ISO 13485 \ CE \ FDA 510(k) Cleared \ Free Sale Certificate\ MDSAP
Titanium Alloy
Custom service supported
7–14 Days (OEM: 15–30 Days)
The Cervical Posterior Screw-Rod Fixation System is designed for posterior fixation procedures involving the cervical spine. Its system concept combines screws and connecting components to support configuration planning across different surgical requirements.
A pre-bent 135° design at the occipito-cervical junction is intended to follow the anatomy of this transition area and support construct planning.

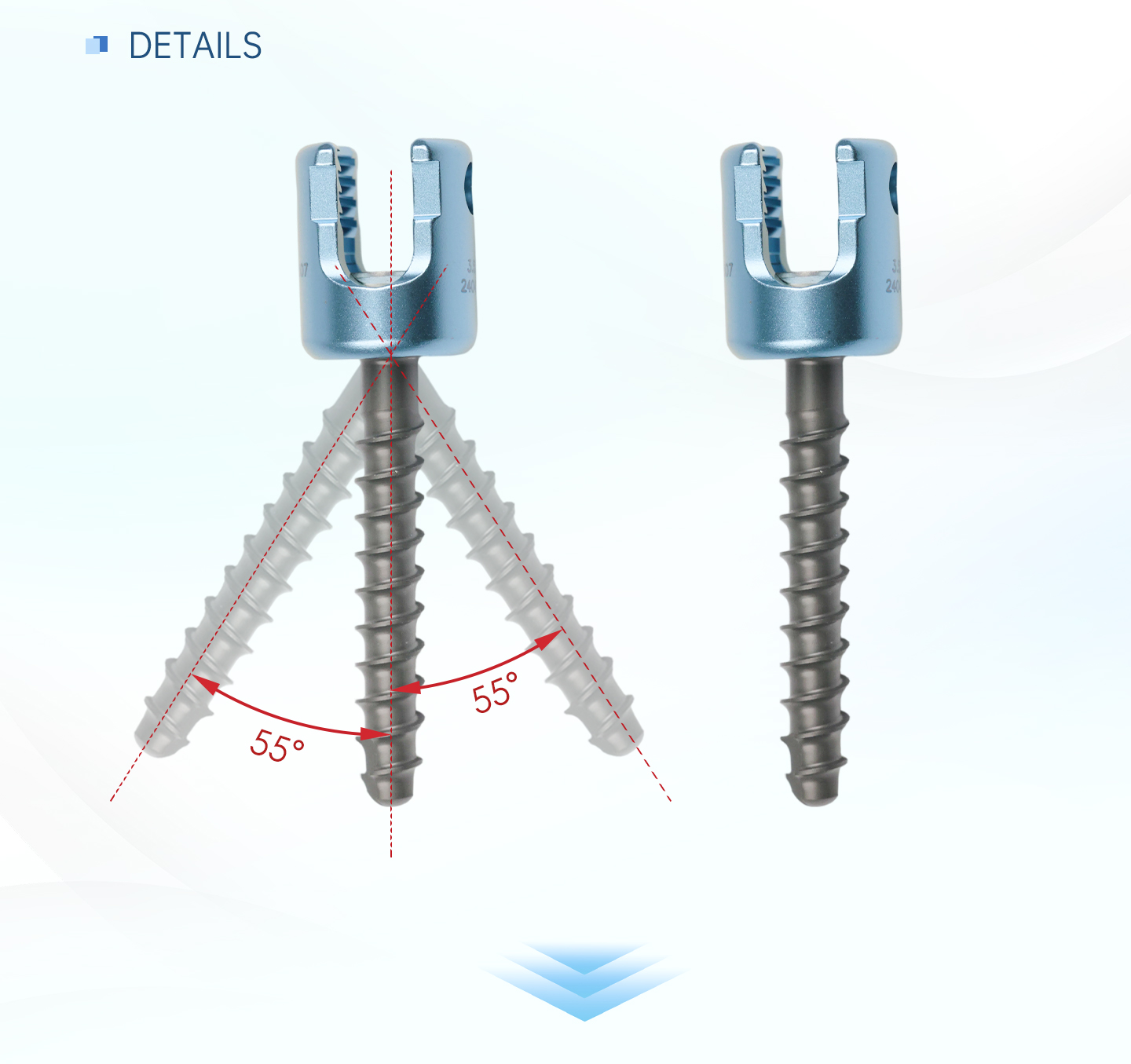

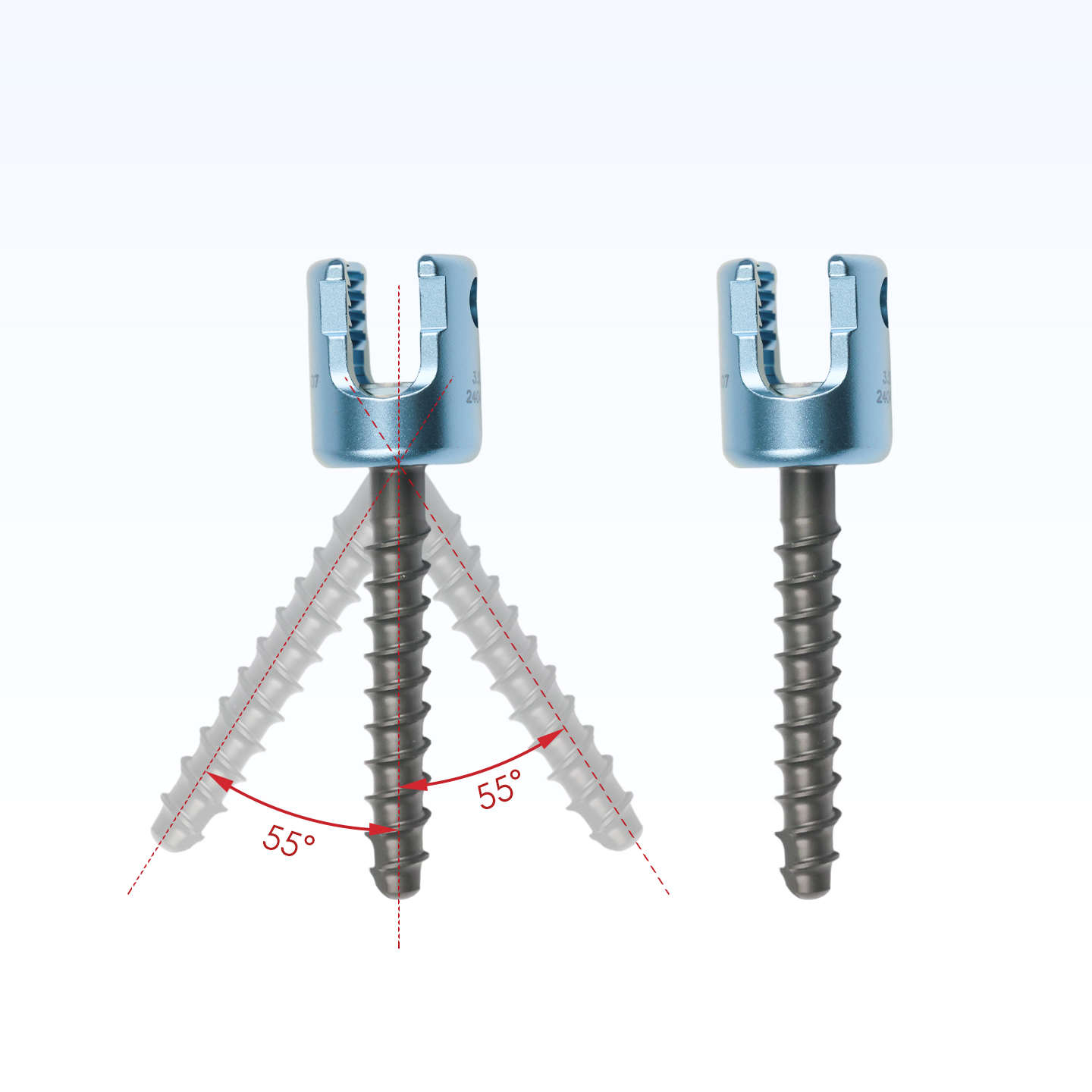

The screw design allows up to 55° of unidirectional angulation, offering flexibility when planning screw and rod alignment.

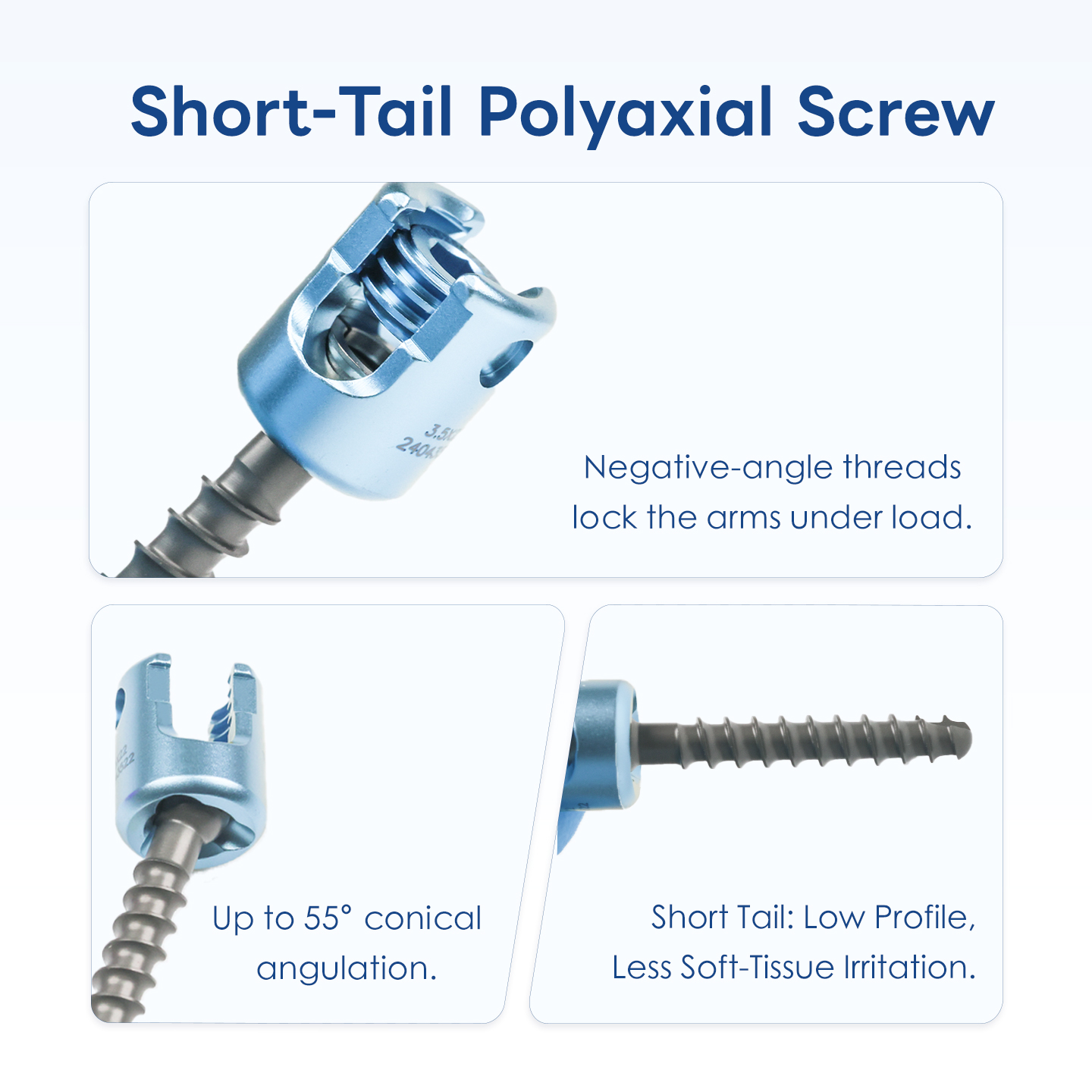

The thread design is intended to help resist screw-arm expansion, a useful design consideration when evaluating fixation components.
A plate-clamp cross-link is designed to facilitate connection when screws are not arranged in a straight line.
The system gives distributors a dedicated cervical posterior fixation option to assess alongside other cervical and spine products in their portfolio.

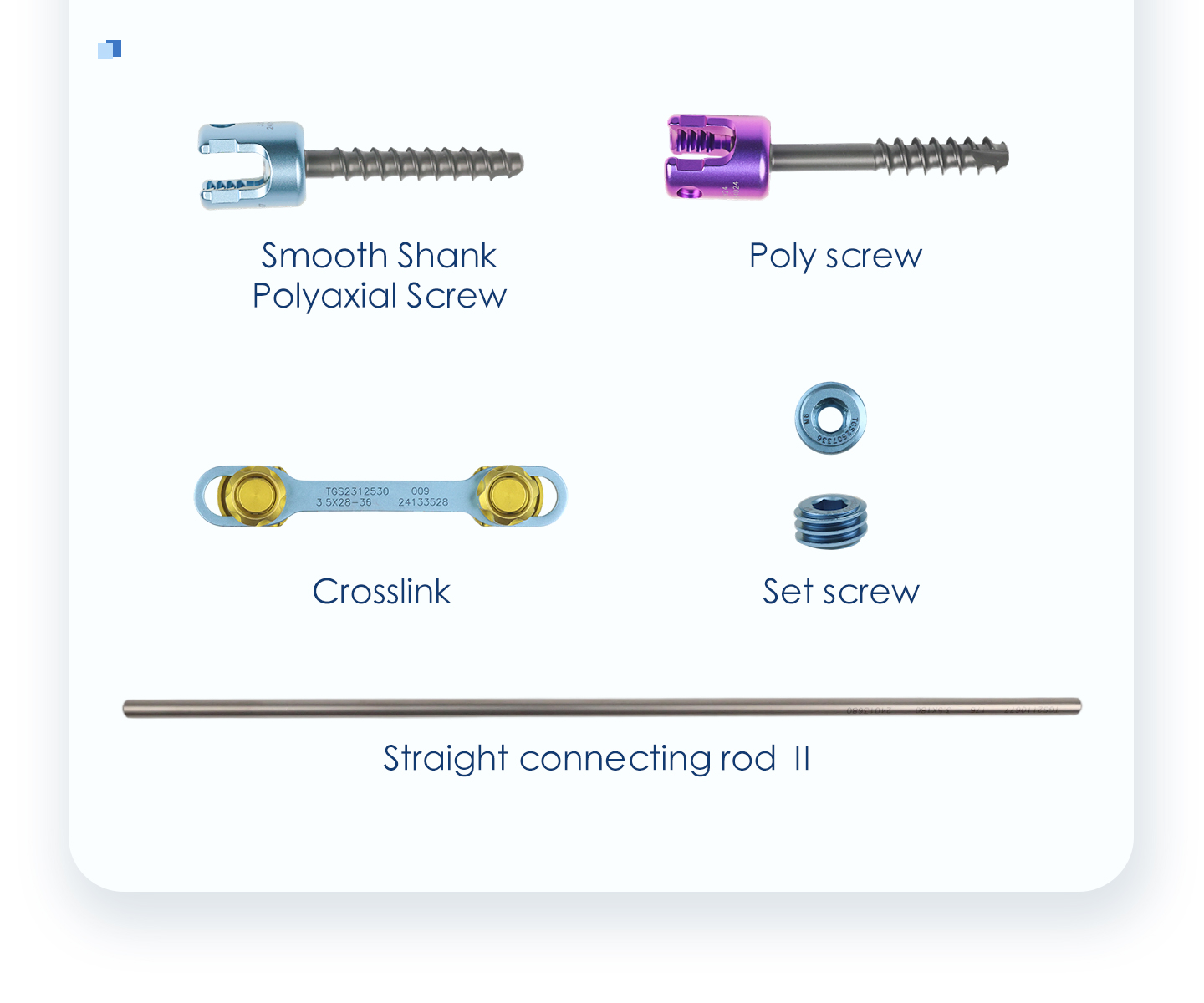

Cervical polyaxial screw | ||
Image | Diameter(mm) | Length(mm) |
 | 3.5 | 10/12/14/16/18/20/22/24/26/28/30/32 |
4.0 | 12/14/16/18/20/22/24/26/28/30/32/34 | |
Polished Rod Cervical polyaxial screw | ||
Image | Diameter(mm) | Length(mm) |
 | 4.0 | 20/22/24/26/28/30/32/34/36 |
Cross-Linkage | ||
Image | Diameter(mm) | Length(mm) |
| 3.5 | 20-28 |
28-36 | ||
36-44 | ||
40-52 | ||
Set Screw | |
Image | Diameter(mm) |
 | M6 |
Straight connecting rod ll | ||
Image | Diameter(mm) | Length(mm) |
 | 3.5 | 150 |
180 | ||
200 | ||
240 | ||

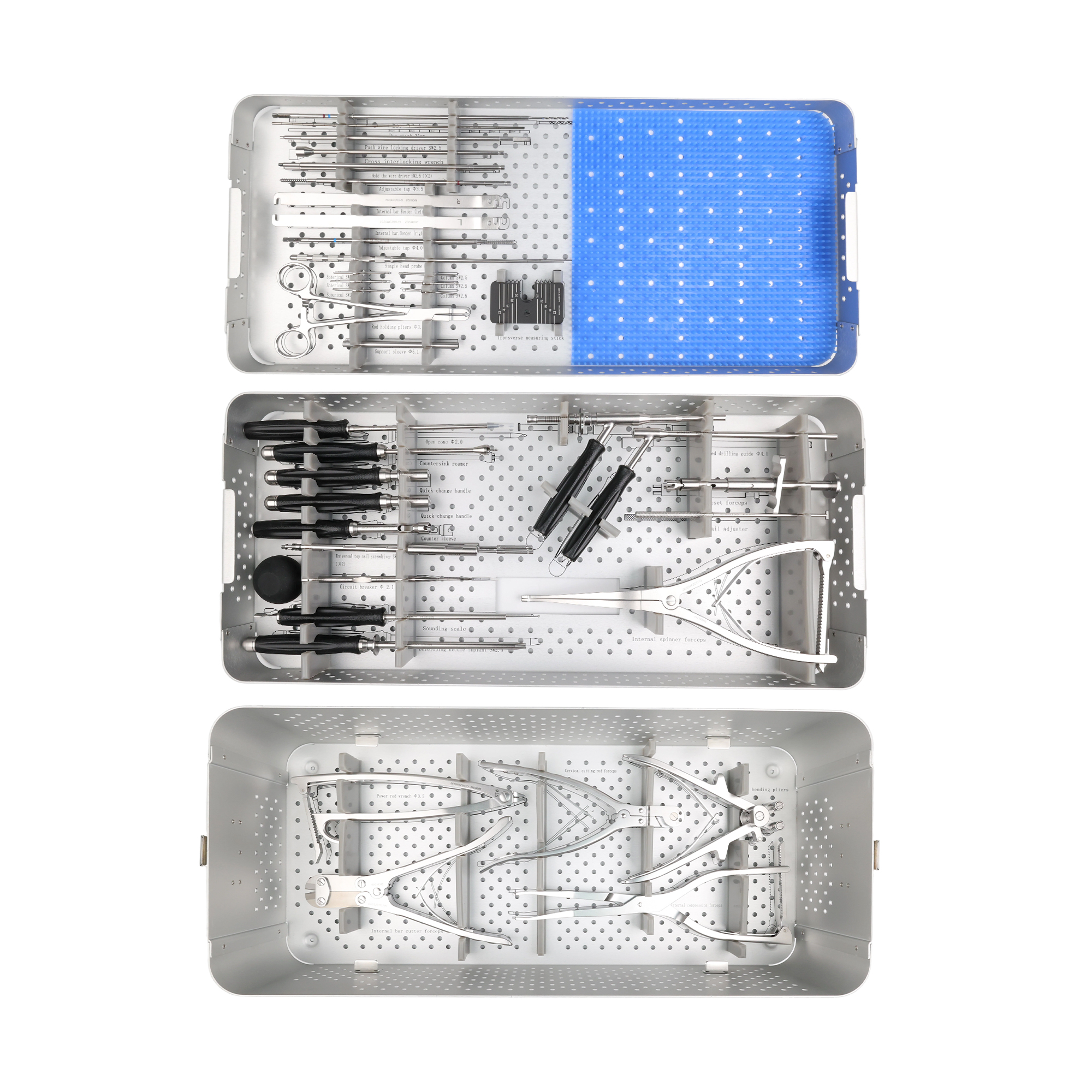

No. | Name | Specification | Quantity | Code |
1 | Open cone | Open cone Φ2.0 | 1 | 90011620 |
2 | Circuit breaker | Φ 2.1 | 1 | 90010302 |
3 | Circuit breaker | Countersink reamer | 1 | 90010303 |
4 | nailer | Universal top nail screwdriver SW2.5 | 2 | 90010304 |
5 | Hook pliers | Cross hook holder | 1 | 90010305 |
6 | Reset forceps | - | 1 | 90010306 |
7 | Drill guide | Fixed drilling guide Φ4.1 | 1 | 90010307 |
8 | Drill guide | Adjustable drilling guide Φ4.1 | 1 | 90010308 |
9 | Counter wrench | Counter sleeve | 1 | 90010309 |
10 | Quick-load handle | Quick-change handle | 2 | 90011609 |
11 | Bone measuring apparatus | Die stick 24cm | 1 | 90010310 |
12 | Wire shear | Ratchet bar cutter forceps | 1 | 90010311 |
13 | Bar bending pliers | - | 1 | 90010312 |
14 | Rod holding forceps | Rod holding pliers Φ3.5 | 1 | 90010313 |
15 | Rotating bar pliers | Power rod wrench Φ3.5 | 1 | 90010314 |
16 | Wire shear | Internal bar cutter forceps | 1 | 90010315 |
17 | Compression forceps | Internal compression forceps | 1 | 90010316 |
18 | Orthopedic spreader forceps | Internal spinner forceps | 1 | 90010317 |
19 | Orthopedic wrench | Push wire locking driver SW2.5 | 1 | 90010318 |
20 | Orthopedic wrench | Cross interlocking wrench | 1 | 90010319 |
21 | Medical ruler | Transverse measuring stick | 1 | 90010320 |
22 | Orthopedic wrench | Hold the wire driver SW2.5 | 2 | 90010321 |
23 | Vertebral reset device | Internal bar Bender (left) | 1 | 90010322 |
24 | Vertebral reset device | Internal bar Bender (right) | 1 | 90010323 |
25 | sleeve | Support sleeve Φ5.1 | 1 | 90010324 |
26 | Orthopedic bit | Bit Φ2.4 | 1 | 90010325 |
27 | Tap for bone | Adjustable tap Φ3.5 | 1 | 90010326 |
28 | Tap for bone | Adjustable tap Φ4.0 | 1 | 90010327 |
29 | Bone probe | Single head probe | 1 | 90010328 |
30 | Guide needle | Spherical SW2.5 | 3 | 90010329 |
31 | Guide needle | Column SW2.5 | 3 | 90010330 |
32 | Orthopedic clamp | Developing needle implant SW2.5 | 1 | 90010331 |
33 | Depth sounder | Sounding scale | 1 | 90010332 |
34 | Implant box | Top box | 1 | 90010333 |
35 | Implant box | Screw box | 1 | 90010334 |
36 | Orthopedic locator | Nail adjuster | 1 | 90010335 |
37 | Instrument box | 1 | 90010336 |
A concise overview of precision manufacturing, quality management, regulatory documentation, and OEM/ODM collaboration available to distributors and project partners.
A Japanese Mazak five-axis machining center supports complex surfaces, multi-angle features, and precision-fit structures while reducing repeated setups and supporting batch consistency.
Quality activities cover incoming material verification, first-article review, in-process checks, final inspection, release, and traceable batch documentation.
Available regulatory support can be reviewed against the target product, model, classification, intended market, and current document validity before an order is placed.
Project communication may cover dimensions, instrument configuration, surface treatment, identification, packaging, documentation, technical feasibility, validation, quantity, cost, and lead time.
Question: What is the Cervical Posterior Screw-Rod Fixation System?
Answer: It is a cervical spine product system designed for posterior fixation procedures.
Question: Can I request configuration and specification details?
Answer: Yes. Contact Geasure Medical with your product requirements to discuss the relevant configuration and specifications.
Question: Are matching instruments available?
Answer: Contact the team to discuss the instruments and configuration relevant to your project.
Question: Can this system be used with components from another brand?
Answer: Cross-brand compatibility should not be assumed. Confirm the exact components and compatibility information with the relevant manufacturer before planning a system.
Question: How can a distributor discuss cooperation?
Answer: Share your target market, product scope, estimated quantity, and contact details with Geasure Medical to begin a distributor discussion.
Question: How do I discuss an OEM/ODM project?
Answer: Send your proposed product scope and project requirements to discuss whether the cooperation model fits your needs.
