Gessure
-
21014
-
1
-
ISO \ CE \ FDA\ FSC\ MDSAP
-
Titanium Alloy
-
Laser marking, custom anodizing colors & packaging
-
7–14 Days (OEM: 15–30 Days)
The 5.5 Spinal Pedicle Screw System is designed for posterior thoracolumbar stabilization, fusion, and deformity correction procedures. Made from Ti-6Al-4V medical titanium alloy, it provides excellent biocompatibility, strength, and corrosion resistance. The 5.5mm rod-based system offers reliable fixation, flexible screw configurations, and stable load distribution. Available in monoaxial, polyaxial, and reduction screws, it supports various clinical applications with precision manufacturing and OEM/ODM customization options.
✔ Monoaxial fixed-angle ✔ 5.5mm rod compatible ✔ Ø4.0–7.5mm · 25–55mm
5.5 Pedicle Screw Videos
5.5 Pedicle Screw Indications
The 5.5 Pedicle Screw is commonly used for posterior spinal fixation and fusion procedures, including:

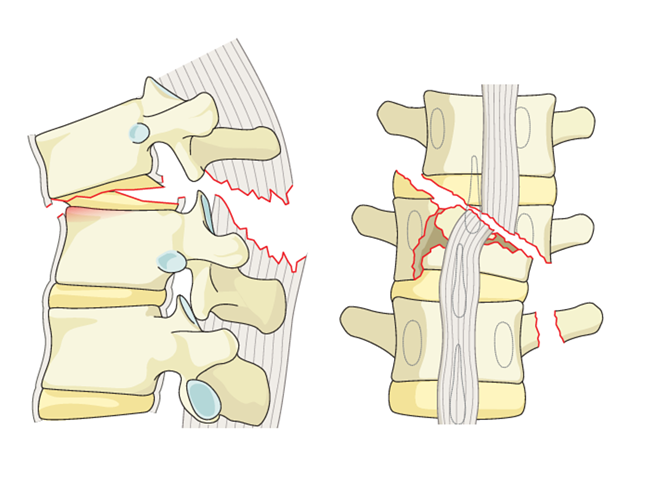

Thoracolumbar Fractures
- Stable and unstable thoracolumbar compression fractures
- Burst fractures requiring posterior stabilization
- Traumatic spinal instability

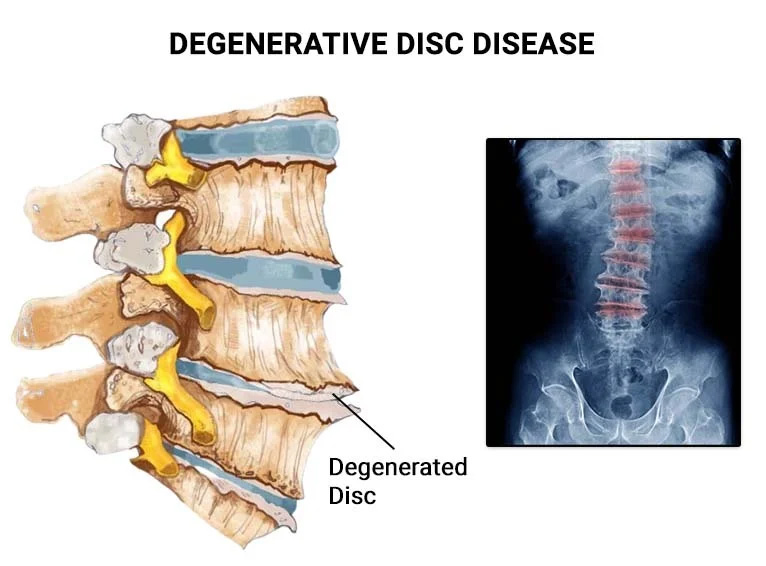

⚙️ Degenerative Spinal Disorders
- Lumbar degenerative disc disease
- Spinal instability caused by degeneration
- Segmental instability

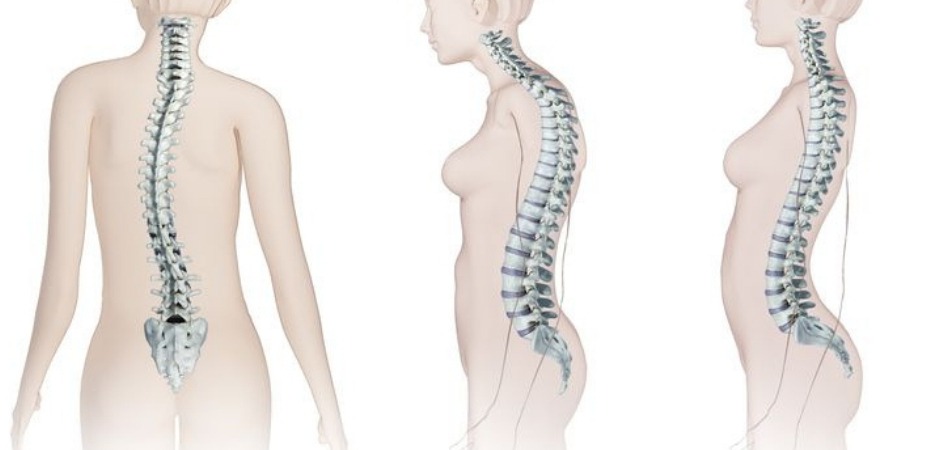

Spinal Deformity Correction
- Mild to moderate spinal deformity correction
- Posterior stabilization procedures

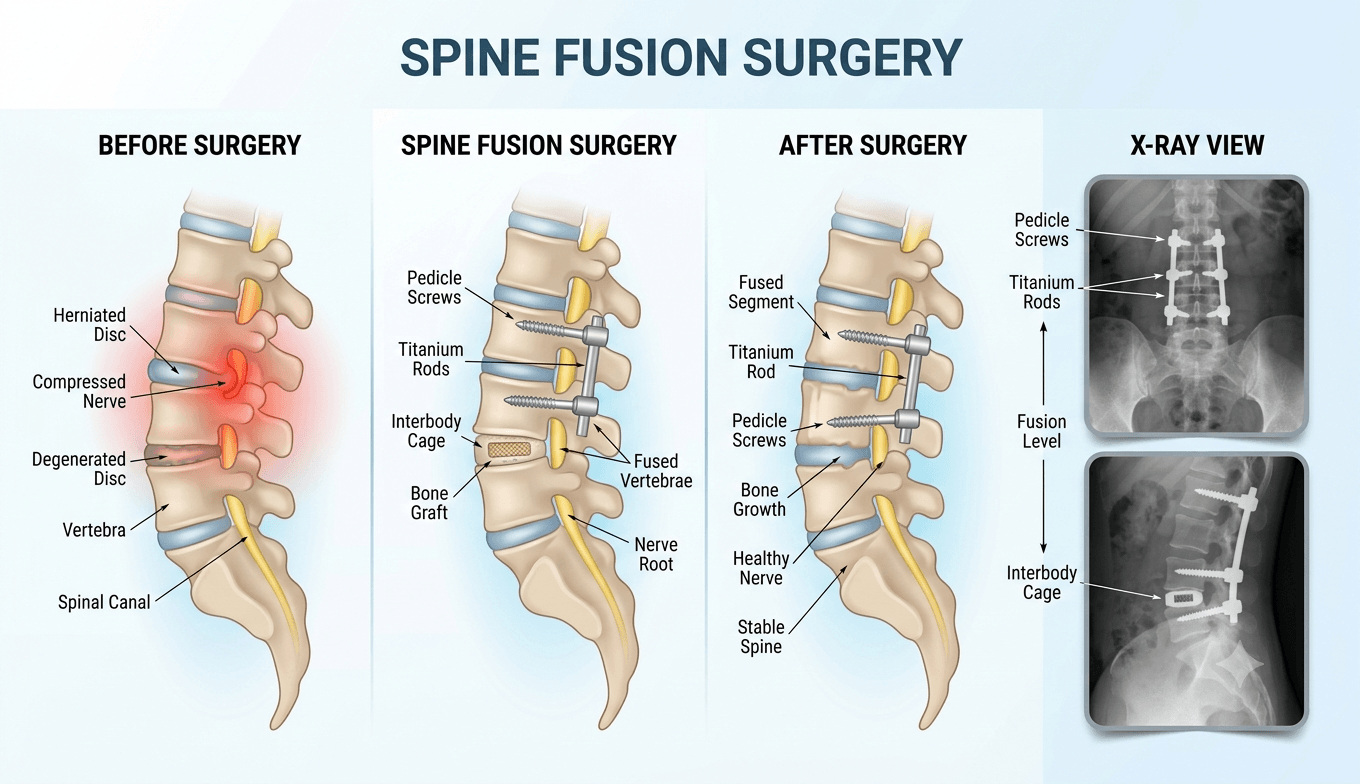

Spinal Fusion Procedures
- Posterior lumbar fusion (PLF)
- Posterior thoracolumbar fixation
- Short-segment pedicle screw fixation
5.5 Pedicle Screw Main Advantages
Premium Titanium Alloy
Made from Ti-6Al-4V medical titanium alloy:
- Excellent biocompatibility
- High fatigue resistance
- Superior corrosion resistance
- MRI compatibility
- Long-term implantation reliability
Monoaxial Fixed-Angle
The monoaxial structure provides:
- Fixed screw head alignment
- Enhanced axial load transmission
- Improved construct rigidity
- Reduced risk of screw head movement during rod placement
Particularly suitable for cases requiring strong stabilization and controlled correction.
Short Segment Advantage
Compared with long-segment fixation:
- Preservation of more spinal motion segments
- Reduced surgical trauma
- Less implant burden
- Lower overall surgical complexity
Optimized Thread Design
- Strong cortical and cancellous bone purchase
- Improved pull-out resistance
- Smooth insertion performance
- Reduced insertion torque
Self-tapping flute design helps minimize surgical steps and improves operative efficiency.
Reliable Locking Mechanism
Compatible with 5.5mm spinal rods:
- Secure screw-rod connection
- Stable locking performance
- Excellent resistance against loosening
- Reliable postoperative fixation
⚙️ Precision Manufacturing & QC
- High-precision CNC machining
- Automated dimensional inspection
- Surface treatment process
- Material composition verification
- Mechanical performance testing
Each implant undergoes strict quality control to ensure consistency and reliability.
5.5 Pedicle Screw Size Specifications
Reduction Monoaxial Pedicle Screw | |||
Picture | Specification | Material | Code |
| 4.0×25 | Titanium Alloy | 21024025 |
4.0×30 | Titanium Alloy | 21024030 | |
4.0×35 | Titanium Alloy | 21024035 | |
4.5×25 | Titanium Alloy | 21024525 | |
4.5×30 | Titanium Alloy | 21024530 | |
4.5×35 | Titanium Alloy | 21024535 | |
4.5×40 | Titanium Alloy | 21024540 | |
5.0×30 | Titanium Alloy | 21025030 | |
5.0×35 | Titanium Alloy | 21025035 | |
5.0×40 | Titanium Alloy | 21025040 | |
5.0×45 | Titanium Alloy | 21025045 | |
5.5×30 | Titanium Alloy | 21025530 | |
5.5×35 | Titanium Alloy | 21025535 | |
5.5×40 | Titanium Alloy | 21025540 | |
5.5×45 | Titanium Alloy | 21025545 | |
5.5×50 | Titanium Alloy | 21025550 | |
6.0×35 | Titanium Alloy | 21026035 | |
6.0×40 | Titanium Alloy | 21026040 | |
6.0×45 | Titanium Alloy | 21026045 | |
6.0×50 | Titanium Alloy | 21026050 | |
6.0×55 | Titanium Alloy | 21026055 | |
6.5×35 | Titanium Alloy | 21026535 | |
6.5×40 | Titanium Alloy | 21026540 | |
6.5×45 | Titanium Alloy | 21026545 | |
6.5×50 | Titanium Alloy | 21026550 | |
6.5×55 | Titanium Alloy | 21026555 | |
7.0×30 | Titanium Alloy | 21027030 | |
7.0×35 | Titanium Alloy | 21027035 | |
7.0×40 | Titanium Alloy | 21027040 | |
7.0×45 | Titanium Alloy | 21027045 | |
7.0×50 | Titanium Alloy | 21027050 | |
7.5×30 | Titanium Alloy | 21027530 | |
7.5×35 | Titanium Alloy | 21027535 | |
7.5×40 | Titanium Alloy | 21027540 | |
7.5×45 | Titanium Alloy | 21027545 | |
7.5×50 | Titanium Alloy | 21027550 | |
7.5×50 | Titanium Alloy | 21027550 | |

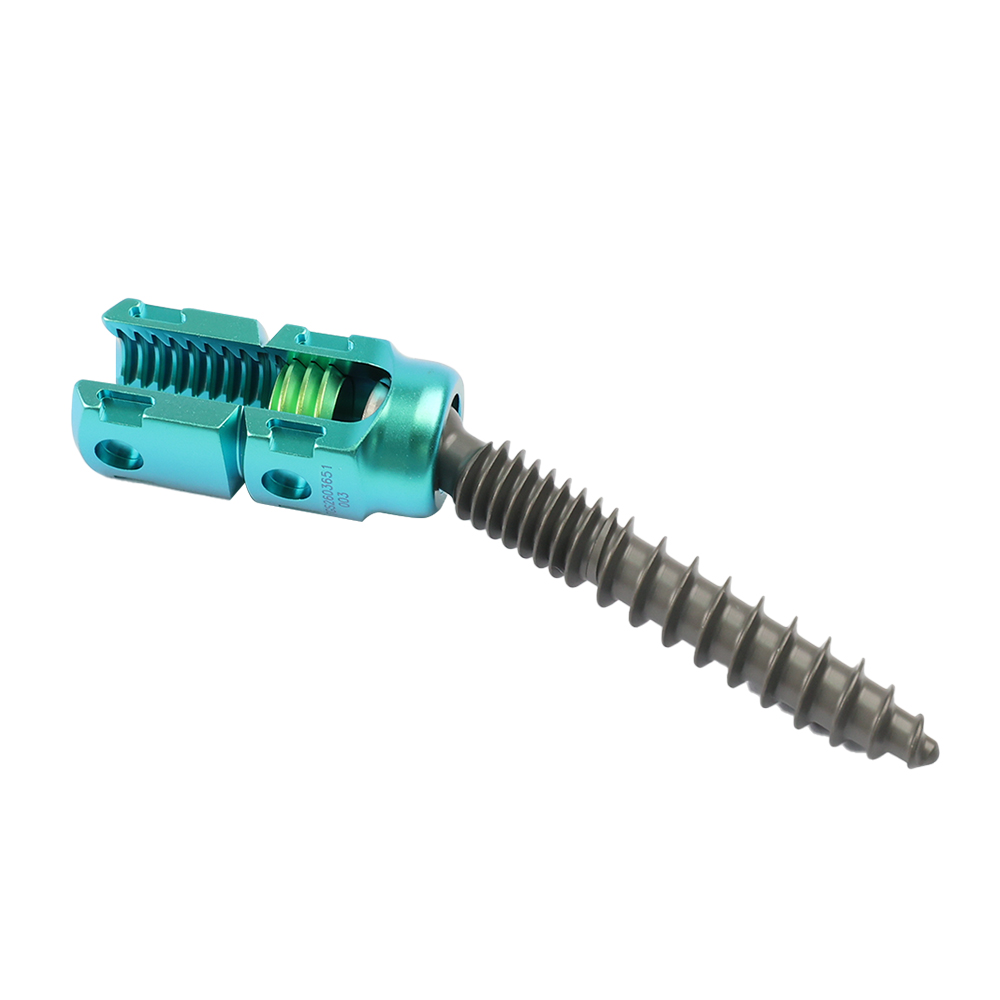

Reduction Polyaxial Pedicle Screw | |||
Picture | Specification | Material | Code |
| 4.0×25 | Titanium Alloy | 21044025 |
4.0×30 | Titanium Alloy | 21044030 | |
4.0×35 | Titanium Alloy | 21044035 | |
4.5×25 | Titanium Alloy | 21044525 | |
4.5×30 | Titanium Alloy | 21044530 | |
4.5×35 | Titanium Alloy | 21044535 | |
4.5×40 | Titanium Alloy | 21044540 | |
5.0×30 | Titanium Alloy | 21045030 | |
5.0×35 | Titanium Alloy | 21045035 | |
5.0×40 | Titanium Alloy | 21045040 | |
5.0×45 | Titanium Alloy | 21045045 | |
5.5×30 | Titanium Alloy | 21045530 | |
5.5×35 | Titanium Alloy | 21045535 | |
5.5×40 | Titanium Alloy | 21045540 | |
5.5×45 | Titanium Alloy | 21045545 | |
5.5×50 | Titanium Alloy | 21045550 | |
6.0×35 | Titanium Alloy | 21046035 | |
6.0×40 | Titanium Alloy | 21046040 | |
6.0×45 | Titanium Alloy | 21046045 | |
6.0×50 | Titanium Alloy | 21046050 | |
6.0×55 | Titanium Alloy | 21046055 | |
6.5×35 | Titanium Alloy | 21046535 | |
6.5×40 | Titanium Alloy | 21046540 | |
6.5×45 | Titanium Alloy | 21046545 | |
6.5×50 | Titanium Alloy | 21046550 | |
6.5×55 | Titanium Alloy | 21046555 | |
7.0×30 | Titanium Alloy | 21047030 | |
7.0×35 | Titanium Alloy | 21047035 | |
7.0×40 | Titanium Alloy | 21047040 | |
7.0×45 | Titanium Alloy | 21047045 | |
7.0×50 | Titanium Alloy | 21047050 | |
7.0×55 | Titanium Alloy | 21047055 | |
7.5×30 | Titanium Alloy | 21047530 | |
7.5×35 | Titanium Alloy | 21047535 | |
7.5×40 | Titanium Alloy | 21047540 | |
7.5×45 | Titanium Alloy | 21047545 | |
7.5×50 | Titanium Alloy | 21047550 | |

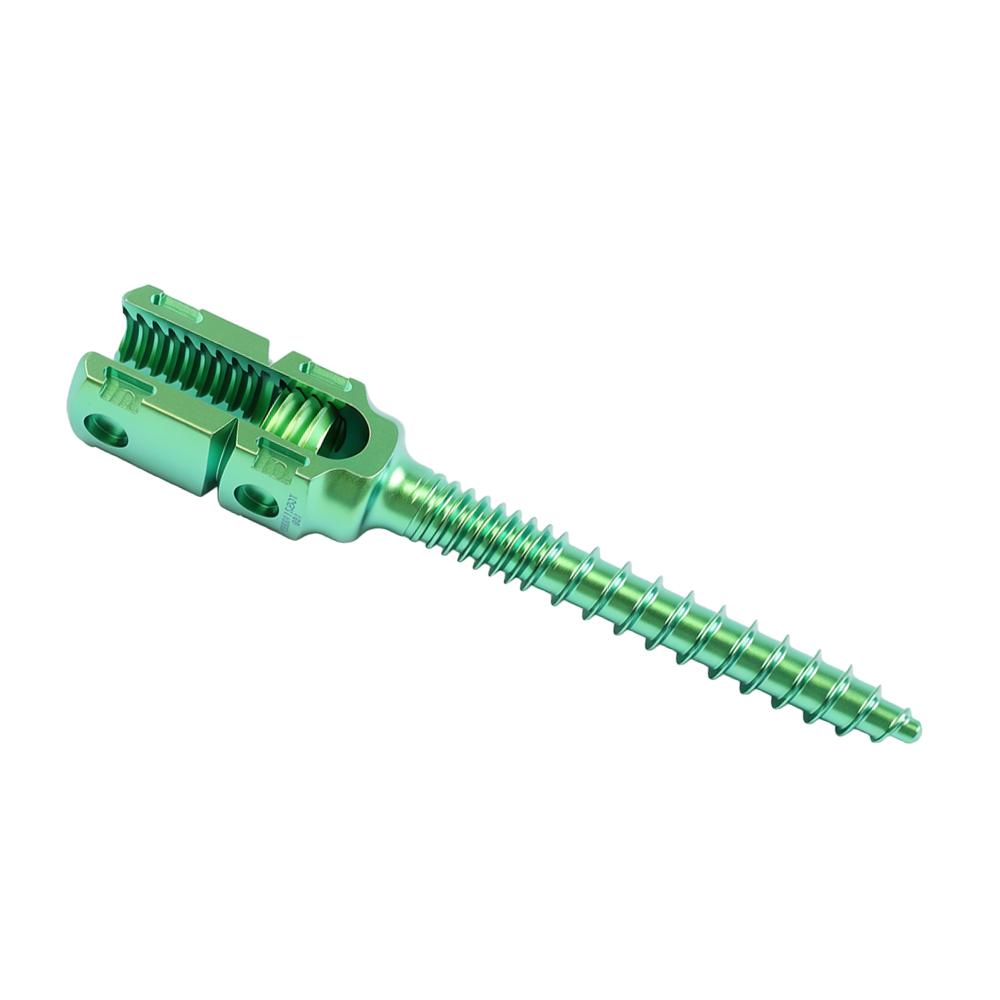

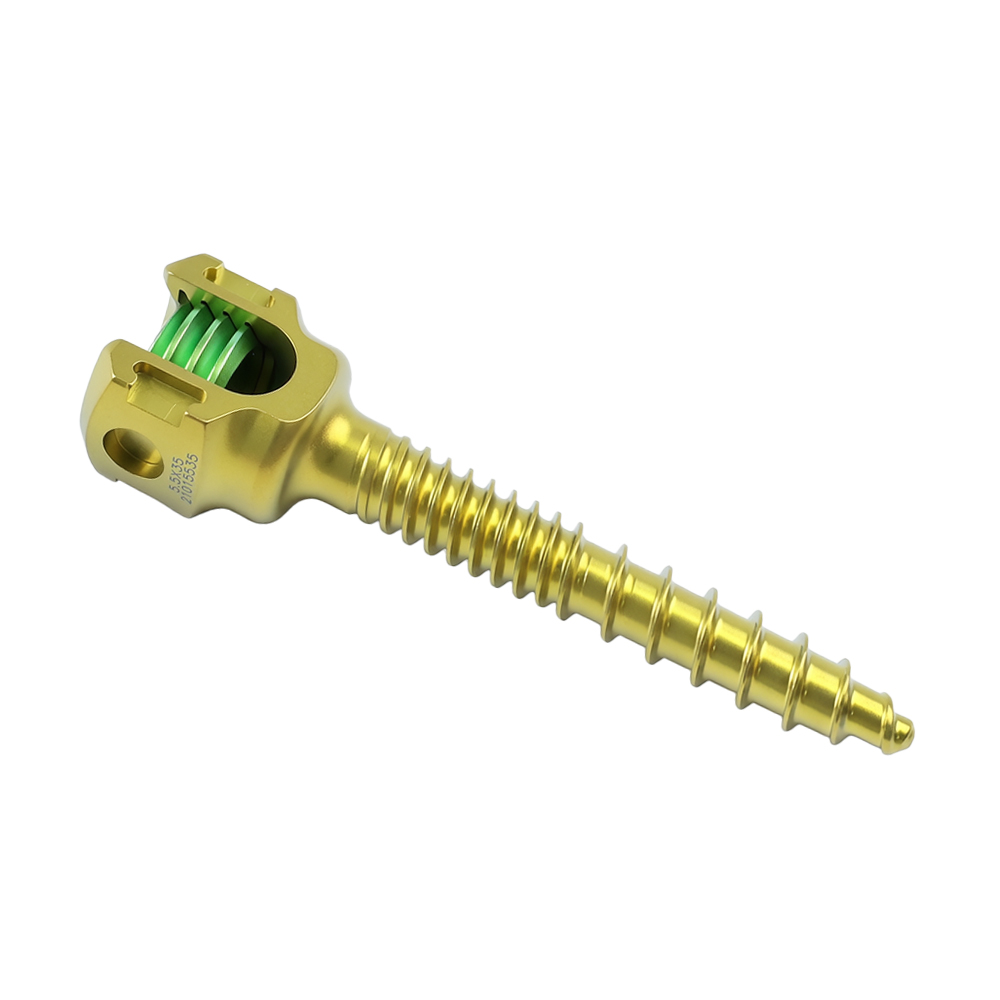

Monoaxial Pedicle Screw | |||
Picture | Specification | Material | Code |
| 4.0×25 | Titanium Alloy | 21014025 |
4.0×30 | Titanium Alloy | 21014030 | |
4.0×35 | Titanium Alloy | 21014035 | |
4.5×25 | Titanium Alloy | 21014525 | |
4.5×30 | Titanium Alloy | 21014530 | |
4.5×35 | Titanium Alloy | 21014535 | |
4.5×40 | Titanium Alloy | 21014540 | |
5.0×30 | Titanium Alloy | 21015030 | |
5.0×35 | Titanium Alloy | 21015035 | |
5.0×40 | Titanium Alloy | 21015040 | |
5.0×45 | Titanium Alloy | 21015045 | |
5.5×35 | Titanium Alloy | 21015535 | |
5.5×40 | Titanium Alloy | 21015540 | |
5.5×45 | Titanium Alloy | 21015545 | |
5.5×50 | Titanium Alloy | 21015550 | |
6.0×35 | Titanium Alloy | 21016035 | |
6.0×40 | Titanium Alloy | 21016040 | |
6.0×45 | Titanium Alloy | 21016045 | |
6.0×50 | Titanium Alloy | 21016050 | |
6.0×55 | Titanium Alloy | 21016055 | |
6.5×30 | Titanium Alloy | 21016530 | |
6.5×35 | Titanium Alloy | 21016535 | |
6.5×40 | Titanium Alloy | 21016540 | |
6.5×45 | Titanium Alloy | 21016545 | |
6.5×50 | Titanium Alloy | 21016550 | |
6.5×55 | Titanium Alloy | 21016555 | |
7.0×30 | Titanium Alloy | 21017030 | |
7.0×35 | Titanium Alloy | 21017035 | |
7.0×40 | Titanium Alloy | 21017040 | |
7.0×45 | Titanium Alloy | 21017045 | |
7.0×50 | Titanium Alloy | 21017050 | |
7.5×35 | Titanium Alloy | 21017535 | |
7.5×40 | Titanium Alloy | 21017540 | |
7.5×45 | Titanium Alloy | 21017545 | |
7.5×50 | Titanium Alloy | 21017550 | |

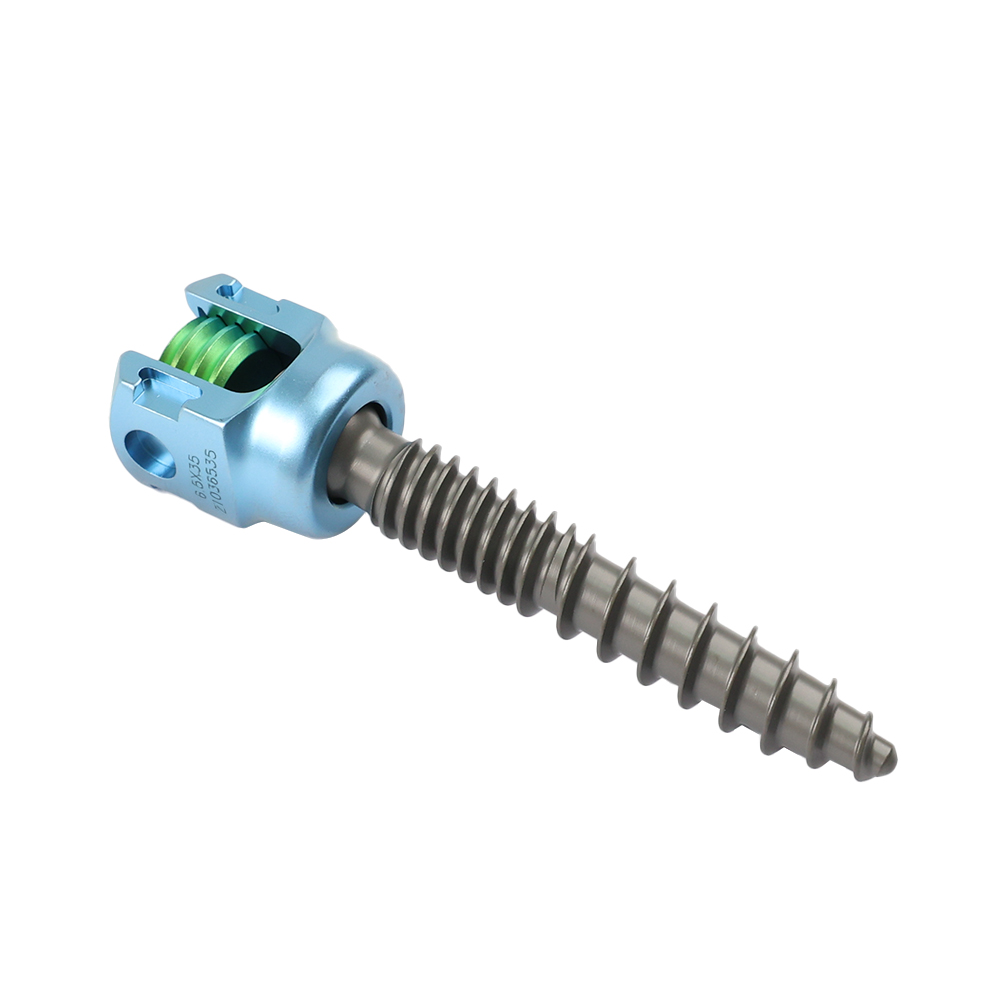

Polyaxial Pedicle Screw | |||
Picture | Specification | Material | Code |
| 4.0×25 | Titanium Alloy | 21034025 |
4.0×30 | Titanium Alloy | 21034030 | |
4.0×35 | Titanium Alloy | 21034035 | |
4.5×25 | Titanium Alloy | 21034525 | |
4.5×30 | Titanium Alloy | 21034530 | |
4.5×35 | Titanium Alloy | 21034535 | |
4.5×40 | Titanium Alloy | 21034540 | |
4.5×45 | Titanium Alloy | 21034545 | |
5.0×30 | Titanium Alloy | 21035030 | |
5.0×35 | Titanium Alloy | 21035035 | |
5.0×40 | Titanium Alloy | 21035040 | |
5.0×45 | Titanium Alloy | 21035045 | |
5.0×50 | Titanium Alloy | 21035050 | |
5.5×30 | Titanium Alloy | 21035530 | |
5.5×35 | Titanium Alloy | 21035535 | |
5.5×40 | Titanium Alloy | 21035540 | |
5.5×45 | Titanium Alloy | 21035545 | |
5.5×50 | Titanium Alloy | 21035550 | |
6.0×35 | Titanium Alloy | 21036035 | |
6.0×40 | Titanium Alloy | 21036040 | |
6.0×45 | Titanium Alloy | 21036045 | |
6.0×50 | Titanium Alloy | 21036050 | |
6.0×55 | Titanium Alloy | 21036055 | |
6.5×30 | Titanium Alloy | 21036530 | |
6.5×35 | Titanium Alloy | 21036535 | |
6.5×40 | Titanium Alloy | 21036540 | |
6.5×45 | Titanium Alloy | 21036545 | |
6.5×50 | Titanium Alloy | 21036550 | |
6.5×55 | Titanium Alloy | 21036555 | |
7.0×30 | Titanium Alloy | 21037030 | |
7.0×35 | Titanium Alloy | 21037035 | |
7.0×40 | Titanium Alloy | 21037040 | |
7.0×45 | Titanium Alloy | 21037045 | |
7.0×50 | Titanium Alloy | 21037050 | |
7.0×55 | Titanium Alloy | 21037055 | |
7.5×35 | Titanium Alloy | 21037535 | |
7.5×40 | Titanium Alloy | 21037540 | |
7.5×45 | Titanium Alloy | 21037545 | |
7.5×50 | Titanium Alloy | 21037550 | |

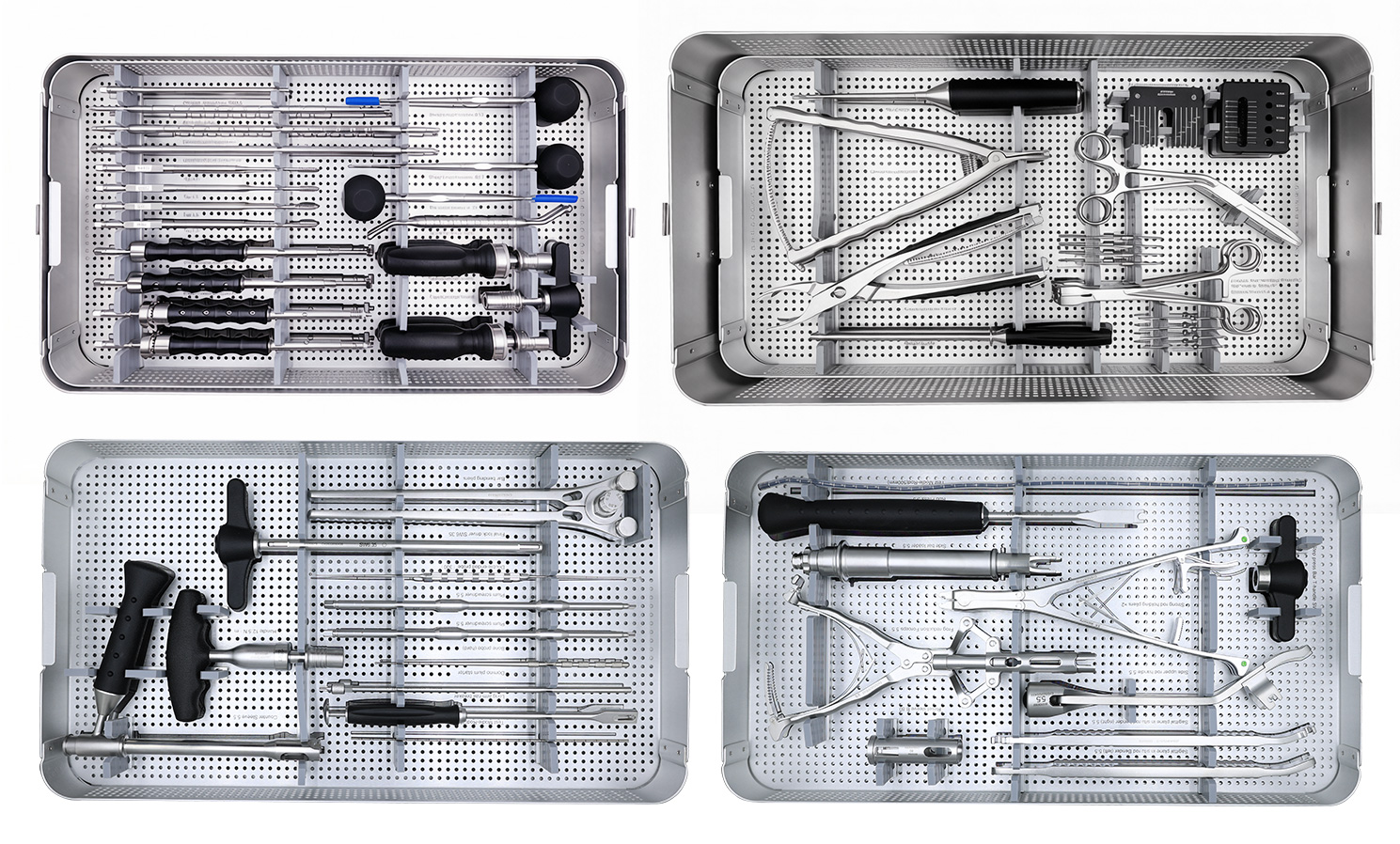

Recommended Supporting Instruments
To achieve accurate and dfficient implantation ,the following surgical are recommended
No. | Name | Specification | Quantity | Code |
1 | Open cone | Open cone | 1 | 90010001 |
2 | Circuit breaker | Straight circuit breaker Φ3.2 | 1 | 90010003 |
3 | Circuit breaker | The circuit breaker is 3.5 | 1 | 90010004 |
4 | Circuit breaker | Straight circuit breaker Φ2.5 | 1 | 90010002 |
5 | Bone probe (hard) | Bone probe (hard) | 1 | 90010201 |
6 | Double-ended probe | 300 | 1 | 90010005 |
7 | tap | Thread Tap 4.5 | 1 | 90010006 |
8 | tap | Thread Tap 5.5 | 1 | 90010007 |
9 | tap | Tap 6.5 | 1 | 90010008 |
10 | tap | Thread Tap 7.5 | 1 | 90010009 |
11 | Quick-load handle | Vertical ratchet handle | 2 | 90010105 |
12 | nailer | Universal nail driver M9 | 1 | 90010060 |
13 | nailer | Single spindle nail driver M9 | 1 | 90010061 |
14 | nailer | Reset gimbal screwdriver M9 | 1 | 90010101 |
15 | nailer | Reset uniaxial pin driver M9 | 1 | 90010102 |
16 | Quick-load handle | T quick change handle | 1 | 90010062 |
17 | Orthopedic clamp | Plum plug driver | 1 | 90010063 |
18 | Orthopedic wrench | Extended plum plug driver | 1 | 90010103 |
19 | Bone measuring apparatus | Die Rod (25mm) | 1 | 90010223 |
20 | Bar bending pliers | Bar bending pliers | 1 | 90010213 |
21 | Rod holding forceps | Rod holding Pliers 5.5 | 1 | 90010069 |
22 | Reset forceps | Rocking Pliers 5.5 | 1 | 90010072 |
23 | Reset forceps | Long tail Nail Swinging Pliers 5.5 | 1 | 90010073 |
24 | Counter wrench | Counter Sleeve 5.5 | 1 | 90010108 |
25 | Orthopedic wrench | Final lock driver SW6.35 | 1 | 90010075 |
26 | Orthopedic strip | Domino plum starter | 1 | 90010076 |
27 | Curved spreader pliers | Curved spreader pliers | 1 | 90010036 |
28 | Curved pressure forceps | Curved pressure forceps | 1 | 90010037 |
29 | Orthopedic wrench | Spinner wrench SW4,.0 | 1 | 90010217 |
30 | Pedicle screw tail cutter | Long arm nail breaker | 1 | 90010107 |
31 | Orthopedic wrench | Plum screwdriver 5.5 | 2 | 90010086 |
32 | Torque handle | 12.5 N · m | 1 | 90010090 |
33 | Orthopedic wrench | Lengthened plum screwdriver | 1 | 90010104 |
34 | Connect the driver horizontally | SW3.5 | 1 | 90010025 |
35 | Diameter ruler | Measuring ruler | 1 | 90010093 |
36 | Medical ruler | Transverse measuring stick | 1 | 90010094 |
37 | Pedicle locator | Pedicle locator | 1 | 90010095 |
38 | Guide needle | columnar | 4 | 90010096 |
39 | Guide needle | spherical | 4 | 90010097 |
40 | Orthopedic clamp | Transverse joint forceps | 1 | 90010041 |
41 | Implant rod press into rod | Rod Press 5.5 | 1 | 90010070 |
42 | Rod holding forceps | Strong rod holding pliers | 2 | 90010079 |
43 | Vertebral reset device | Sagittal plane in situ rod Bender (left) 5.5 | 1 | 90010081 |
44 | Vertebral reset device | Sagittal plane in situ rod bender (right) 5.5 | 1 | 90010082 |
45 | Bone measuring apparatus | Die rod 50cm | 1 | 90010067 |
46 | Reset forceps | Frog reduction Forceps 5.5 | 1 | 90010071 |
47 | sleeve | Reset sleeve B 80 | 1 | 90010084 |
48 | Spinal implant pusher | Side bar loader 5.5 | 1 | 90010087 |
49 | Spinal implant pusher | Side upper rod handle 5.5 | 1 | 90010088 |
50 | Spinal implant pusher | Step press Bar T-handle SW14 | 1 | 90010089 |
51 | Instrument box | 1 | 90010098B |
5.5 Pedicle Screw RFQ
What is a 5.5 Pedicle Screw System?
The 5.5 Pedicle Screw System is a posterior spinal fixation system designed for thoracic and lumbar spine stabilization, spinal fusion, fracture fixation, and deformity correction procedures.
The system consists of pedicle screws, spinal rods, locking caps, and compatible surgical instruments, providing reliable mechanical stability and precise spinal alignment control.
Manufactured from medical-grade Ti-6Al-4V titanium alloy, the 5.5 spinal pedicle screw system offers excellent biocompatibility, high fatigue strength, corrosion resistance, and long-term implantation reliability.
It is widely used in orthopedic and neurosurgical applications, including thoracolumbar fixation, posterior lumbar fusion, and complex spinal reconstruction.
What are the main applications of the 5.5 Pedicle Screw System?
The 5.5 spinal fixation system is designed for a wide range of posterior spinal stabilization procedures.
Typical clinical applications include thoracolumbar fracture fixation, degenerative spinal disease treatment, spinal deformity correction, and fusion surgeries.
Thoracolumbar Fracture Fixation
The pedicle screw system provides stable fixation for vertebral fractures, including compression fractures, burst fractures, and traumatic spinal instability.
Its rigid screw-rod construct helps restore spinal stability and maintain postoperative alignment.
Degenerative Spine Treatment
The system can be used for lumbar degenerative disc disease, spinal stenosis, spondylolisthesis, and segmental instability requiring posterior fusion.
The reliable fixation strength supports successful spinal fusion and long-term stability.
Spinal Deformity Correction
The 5.5 pedicle screw system supports correction procedures for scoliosis, kyphosis, and other spinal alignment disorders.
Multiple screw configurations allow surgeons to select suitable fixation strategies according to different anatomical conditions.
What materials are used for the 5.5 Pedicle Screw System?
The standard 5.5 Pedicle Screw System is manufactured from premium Ti-6Al-4V medical titanium alloy.
Titanium alloy provides excellent biocompatibility, high mechanical performance, lightweight properties, and superior corrosion resistance.
The material is widely accepted for orthopedic implant applications due to its long-term safety and durability.
Optional materials and surface treatments can be customized according to customer requirements.
What are the advantages of the 5.5 Spinal Pedicle Screw System?
The 5.5 spinal pedicle screw system offers several advantages for surgeons, distributors, and medical device partners.
Stable Screw-Rod Fixation
The optimized locking mechanism ensures secure connection between pedicle screws and 5.5mm spinal rods.
The stable construct improves resistance against loosening and provides reliable postoperative spinal support.
Multiple Screw Configurations
The system is available with different screw options, including monoaxial pedicle screws, polyaxial pedicle screws, and reduction screws.
These configurations provide surgical flexibility for different spinal fixation requirements.
Precision Manufacturing
Produced through advanced CNC machining technology, each component features accurate dimensions, smooth surface finishing, and consistent mechanical performance.
Strict quality control processes ensure product reliability and compliance with medical implant manufacturing requirements.
What is the difference between monoaxial and polyaxial pedicle screws?
A monoaxial pedicle screw has a fixed screw head structure, providing higher rigidity and stronger axial load transfer.
It is suitable for applications requiring strong stabilization and controlled fixation.
A polyaxial pedicle screw allows multi-directional movement of the screw head, making rod placement easier and improving surgical flexibility.
Both screw types are commonly used in posterior spinal fixation procedures depending on clinical requirements.
