| Warranty | Lifetime |
| After-sale Service | Return and Replacement |
| Warranty | Lifetime |
| After-sale Service | Return and Replacement |
| Place of Origin | Jiangsu, China |
| Instrument classification | Class III |
| Properties | Implant Materials & Artificial Organs |
| Brand Name | geasure |
| Model Number | GB5X01 |
| Licence Number | Can consult |

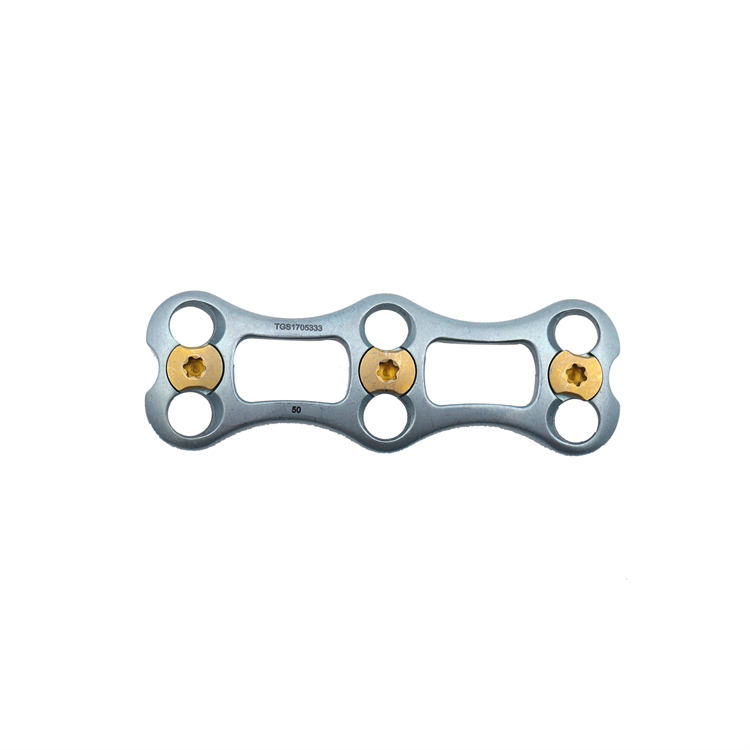

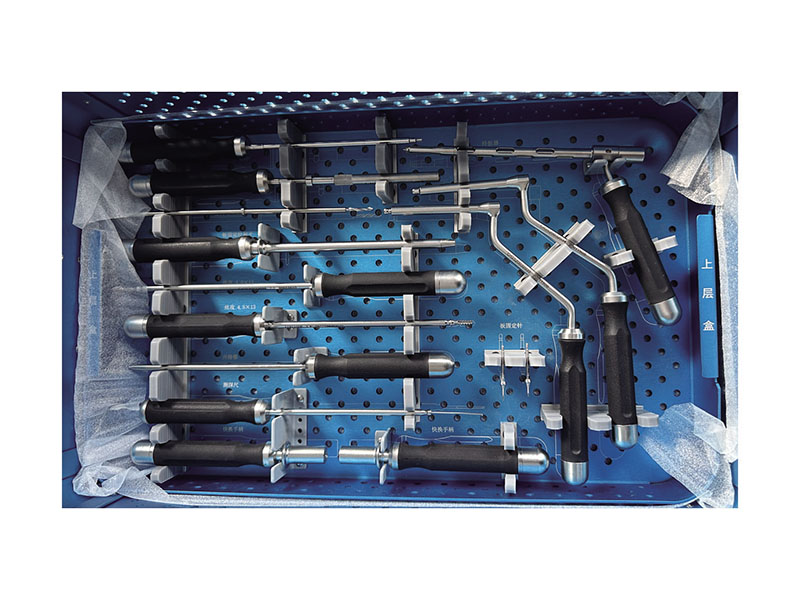

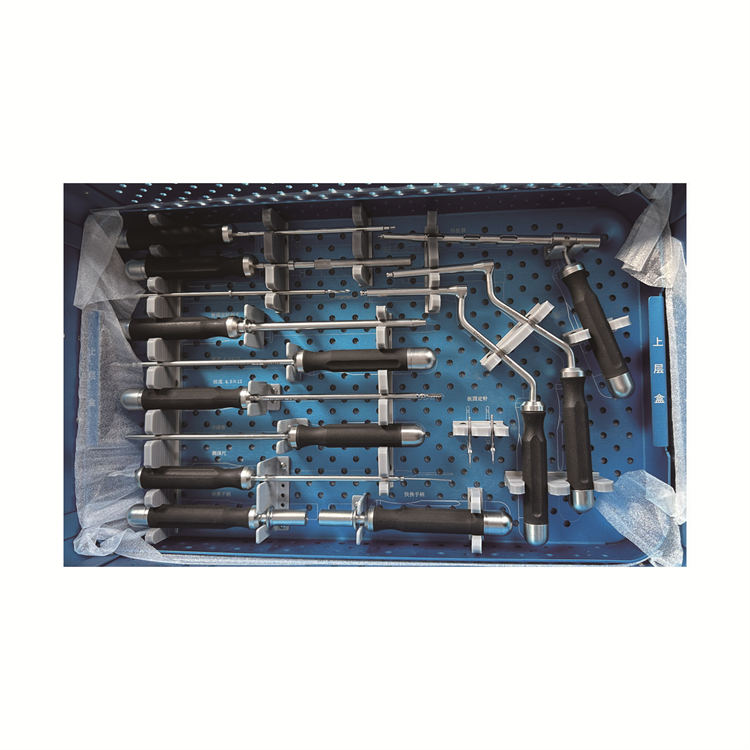

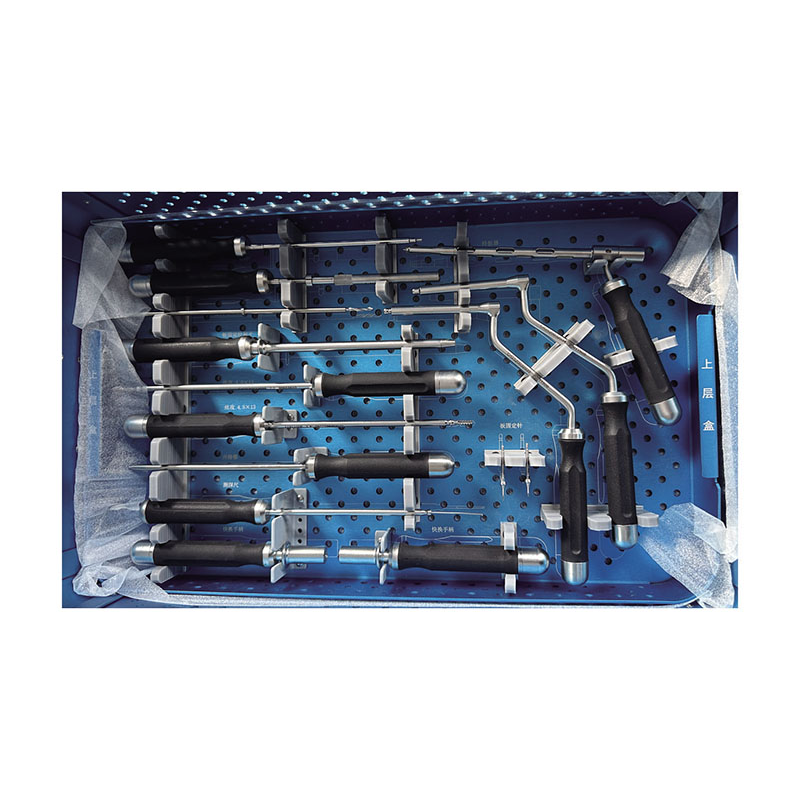

| Name | Cervical plate instrument |
| Model | GB5X01 |
| Matrial | Titanium Alloy |
| Code | 90011623 |
| Picture number | Part Name | Specification | Size | Quantity | Coding | Drawing number |
|---|---|---|---|---|---|---|
| 1 | Radiographic Ruler | Development template | 9-12 | 1 | 90002201 | GA3X01 |
| 2 | Guide Wire 3.2 mm | Thread guide pin | 3.2×400 | 5 | 90002003 | GA1X03 |
| 3 | Hand Reamer | Hard expansion | 9 | 1 | 90002025 | GA1X25 |
| 4 | Flexible Ream Shaft | Soft expansion tool bar is rotating forward | 8.5-14 | 1 | 90002204 | GA3X0500 |
| 5 | Opening Drill Bit , cannulated | Proximal Hollow Drill | 14 | 1 | 90002203 | GA3X04 |
| 6 | Protection Sleeve | Inlet guide tube | 1 | 90002601 | GA8X01 | |
| 6 | Handle for Protection Sleeve | Channel handle | 1 | 90002602 | GA8X0200 | |
| 7 | Gripper | Guide pin holder | 117 | 1 | 90002050 | GA1X4100 |
| 8 | Connection Screw, cannulated | Connecting bolt | M8×0.75 | 2 | 90002218 | GA3X09 |
| 9 | Rod Pusher for Reaming Rod with Hexagonal Screwdriver | Ball handle wrench | SW6.5 | 1 | 90002217 | GA3X0800 |
| 10 | Insertion Handle for Nail | Handle | 1 | 90002219 | GA3X10 | |
| 11 | Multihole Drill Sleeve | Cellular locator | 17/3.2 | 1 | 90002603 | GA8X0300 |
| 12 | quick coupling | Adapter | 85 | 1 | 90002056 | GA1X4700 |
| 13 | T-Handle with quick coupling | Quick change handle | 92 | 1 | 90002055 | GA1X4600 |
| 14 | Reduction Instrument for Medullary Nails | Reset rod | 7 | 1 | 90002016 | GA1X1600 |
| 15 | Reamer Head, 8.5 mm dia. | Soft expansion head 8.5 | 8.5 | 1 | 90002205 | GA3X06 |
| 15 | Reamer Head, 9 mm dia. | Soft expansion head 9 | 9 | 1 | 90002206 | GA3X07 |
| 15 | Reamer Head, 9.5 mm dia. | Soft expansion head 9.5 | 9.5 | 1 | 90002207 | GA3X07 |
| 15 | Reamer Head, 10 mm dia. | Soft expansion head 10 | 10 | 1 | 90002208 | GA3X07 |
| 15 | Reamer Head, 10.5 mm dia. | Soft expansion head 10.5 | 10.5 | 1 | 90002209 | GA3X07 |
| 15 | Reamer Head, 11 mm dia. | Soft expansion head 11 | 11 | 1 | 90002210 | GA3X07 |
| 15 | Reamer Head, 11.5 mm dia. | Soft expansion head 11.5 | 11.5 | 1 | 90002211 | GA3X07 |
| 15 | Reamer Head, 12 mm dia. | Soft expansion head 12 | 12 | 1 | 90002212 | GA3X07 |
| 15 | Reamer Head, 12.5 mm dia. | Soft expansion head 12.5 | 12.5 | 1 | 90002213 | GA3X07 |
| 15 | Reamer Head, 13 mm dia. | Soft expansion head 13 | 13 | 1 | 90002214 | GA3X07 |
| 16 | Awl , cannulated | Hollow hole opener | 4.2 | 1 | 90002005 | GA1X0500 |
| 17 | Protection Sleeve, 12/8 | Outer casing 12/8 | 12-8 | 2 | 90002227 | GA3X18 |
| 17 | Drill Bit Sleeve,8/4.3 | Drill sleeve 8/4.3 | 8/4.3 | 2 | 90002228 | GA3X19 |
| 17 | Trocar,4.3 | Trocar 4.3 | 4.3 | 1 | 90002229 | GA3X20 |
| 18 | Screwdriver, hexagonal with spherical head | Connecting bolt universal wrench | SW6.5 | 1 | 90002106 | GA2X0600 |
| 19 | Connector, for Insertion Handle | Driver | SW11/M8 | 1 | 90002202 | GA3X0200 |
| 20 | Aiming Arm | Proximal sight | 1 | 90002220 | GA3X1100 | |
| 21 | Protection Sleeve, 11.5/8.5 | Outer casing 11.5/8.5 | 11.5/8.5 | 2 | 90002221 | GA3X12 |
| 21 | Guild Pin Sleeve,8.5/3.2 | Guide needle cannula 8.5/3.2 | 8.5/3.2 | 2 | 90002222 | GA3X13 |
| 21 | Trocar 3.2mm | Trocar 3.2 | 3.2 | 1 | 90002223 | GA3X14 |
| 22 | Drill Bit,4.3,Long | Long bone drill 4.3 | 4.3 | 2 | 90002231 | GA3X22 |
| 23 | Hammer Guide Shaft | Sliding hammer guide rod | M12/10 | 1 | 90002156 | GA2X56 |
| 24 | Depth Gauge for Locking Screws, | Lock nail depth sounder | 20-100 | 1 | 90002230 | GA3X2100 |
| 25 | Direct Measuring Device for Guide Pin | Guide pin depth sounder | 40-130 | 1 | 90002224 | GA3X15 |
| 26 | Reamer(Fixation Sleeve for Reamer) | Proximal limit step drill | 6.5/4.5 | 1 | 90002225 | GA3X1600 |
| 27 | Sliding Hammer | Sliding hammer | 260 | 1 | 90002073 | GA1X6400 |
| 28 | Compression Screw | Pressure bolt | M6 | 1 | 90002226 | GA3X17 |
| 29 | Screwdriver Stardrive, T25 | Lock nail wrench T25 | T25 | 1 | 90002232 | GA3X2300 |
| 30 | Screwdriver Stardrive Shaft, T25 | Lock nail wrench lever T25 | T25 | 1 | 90002233 | GA3X24 |
| 31 | Ream 6.0 | Flat drill 6.0 | 1 | 90002240 | GA3X31 | |
| 32 | Drill Bit 6.0 | Bone Drill 6.0 | 1 | 90002241 | GA3X32 | |
| 33 | Reamer 3.4/6.0 | Step drill 3.4/6.0 | 1 | 90002242 | GA3X33 | |
| 34 | Direct Measuring Device for Drill Bits | Sounder 4.5 | 150 | 1 | 90002108 | GA2X08 |
| 35 | Drill Bit,4.3 | Bone Drill 4.3 | 150 | 2 | 90002148 | GA2X48 |
| 36 | Handle with quick coupling | AO type quick change handle | 1 | 90002155 | GA2X5500 | |
| 37 | Pin Wrench | Small wrench | 4 | 1 | 90002103 | GA2X03 |
| 38 | Combination Wrench | Open-end wrench | SW11 | 1 | 90002102 | GA2X02 |
| 39 | Handle for Expander Spacer | Auxiliary positioning rod holder | 268 | 1 | 90002248 | GA3X3900 |
| 39 | ConnectingScrew of Expander Space | Auxiliary positioning rod holding rod | 265 | 1 | 90002249 | GA3X4000 |
| 40 | Expander Wire for Expander Spacer | Auxiliary positioning rod inner core | 328 | 1 | 90002250 | GA3X4100 |
| 41 | L-Curette for Anterior Nail Contact | L-shaped spatula | 155 | 1 | 90002117 | GA2X17 |
| 42 | L-space , adjustable | Adjustable positioning rod | 9-12 | 1 | 90002243 | GA3X3400 |
| 43 | Space Shaft,9 | Positioning rod 9 | 9 | 1 | 90002244 | GA3X35 |
| 44 | Space Shaft,10 | Positioning rod 10 | 10 | 1 | 90002245 | GA3X36 |
| 45 | Space Shaft,11-12 | Positioning rod 11-12 | 11-12 | 1 | 90002246 | GA3X37 |
| 46 | ||||||
| 47 | Extraction Screw | Pull bolt | M8×0.75 | 1 | 90002257 | GA3X48 |
| 48 | Aiming Beam for Locking, 340-420 | Guide rod 340-420 | 340-420 | 1 | 90002236 | GA3X2700 |
| 49 | ||||||
| 50 | Expander Spacer,9 | Auxiliary positioning rod 9 | 9 | 1 | 90002251 | GA3X42 |
| 51 | Expander Spacer,10 | Auxiliary positioning rod 10 | 10 | 1 | 90002252 | GA3X43 |
| 52 | Expander Spacer,11-12 | Auxiliary positioning rod 11-12 | 11-12 | 1 | 90002253 | GA3X44 |
| 53 | Sspace Block | Positioning card block | 1 | 90002247 | GA3X3800 | |
| 54 | Aiming Arm for Distal Locking | Remote sight | 1 | 90002254 | GA3X45 | |
| 55 | Aiming Arm for Dynamic Locking | Dynamic hole sight | 1 | 90002255 | GA3X4600 | |
| 56 | ||||||
| 57 | Extraction Hook | Guide needle with hook | 2.8 | 1 | 90002015 | GA1X15 |
| 58 | Screwdriver Stardrive, cannulated | End cap hollow wrench | SW4 | 1 | 90002064 | GA1X5500 |
| 59 | Screwdriver, hexagonal with spherical head | Tail cap universal ball wrench | SW4 | 1 | 90002079 | GA1X6900 |
| Insrument Set Box | 1 | 90002258 | GA3X-0100-XH | |||
| Ream Head Box | (GA1X8400) |
Q1: Would you please give some information on shipping mode and charges?
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q2: Do you haveISO9001, ISO 13485, CE approvals?
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q3: What is the minimum order that we can place? Do you provide free samples?
A: We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.
Q4:Can I buy products not shown but similar to your catalogue?
A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Q5:Do you have stock for listed products, or they are newly produced? What are your terms of payment?
A: Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment<=800usd, in="" advance.="" payment="">800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
