Hemolok Clips

Product Overview

The Hemolok Clips are premium polymer-based ligation clips designed for secure vessel occlusion and tissue management across a wide range of surgical procedures. Manufactured from high-quality POM (polyoxymethylene) material with excellent biocompatibility, these clips feature an innovative elastic hinge design that allows flexible adjustment before closure while maintaining the option for removal after closure if required. The curved anti-slip texture with cross-distributed teeth ensures superior adherence to blood vessels, effectively preventing tissue sliding during application. Available in three sizes—Small (S), Medium (M), and Large (L)—with ligation scopes ranging from 3 mm to 16 mm, the system accommodates diverse vessel diameters from 1 mm to 10 mm. The radiolucent polymer construction enables clear postoperative imaging without artifacts, while the robust clip design provides reliable hemostasis with audible user feedback. Supplied sterile in convenient 6-unit packs and compatible with dedicated clip appliers for 5 mm and 10 mm trocars, the Hemolok Clip System delivers safe, efficient, and cost-effective ligation for general, laparoscopic, and robotic-assisted surgery.

Indications for Use

The Hemolok Clip System is indicated for the following clinical scenarios:

• Vessel ligation in general surgical procedures, including cholecystectomy, appendectomy, and colorectal surgeries requiring secure vascular control.

• Laparoscopic surgery across all specialties where endoscopic vessel occlusion is required.

• Biliary duct ligation in hepatobiliary surgeries, including laparoscopic cholecystectomy.

• Urological procedures such as nephrectomy, prostatectomy, and vasectomy.

• Gynecological surgeries including hysterectomy, oophorectomy, and tubal ligation.

• Thoracic procedures including lung resection and mediastinal surgery.

• Emergency surgeries where rapid, reliable hemostasis is required.

• Pediatric surgeries where smaller clips may be required for delicate vascular structures.

• Robotic-assisted surgery as a complementary ligation system.

Key Advantages

The Hemolok Clip System offers a range of distinct clinical benefits that enhance surgical efficiency, safety, and patient outcomes.

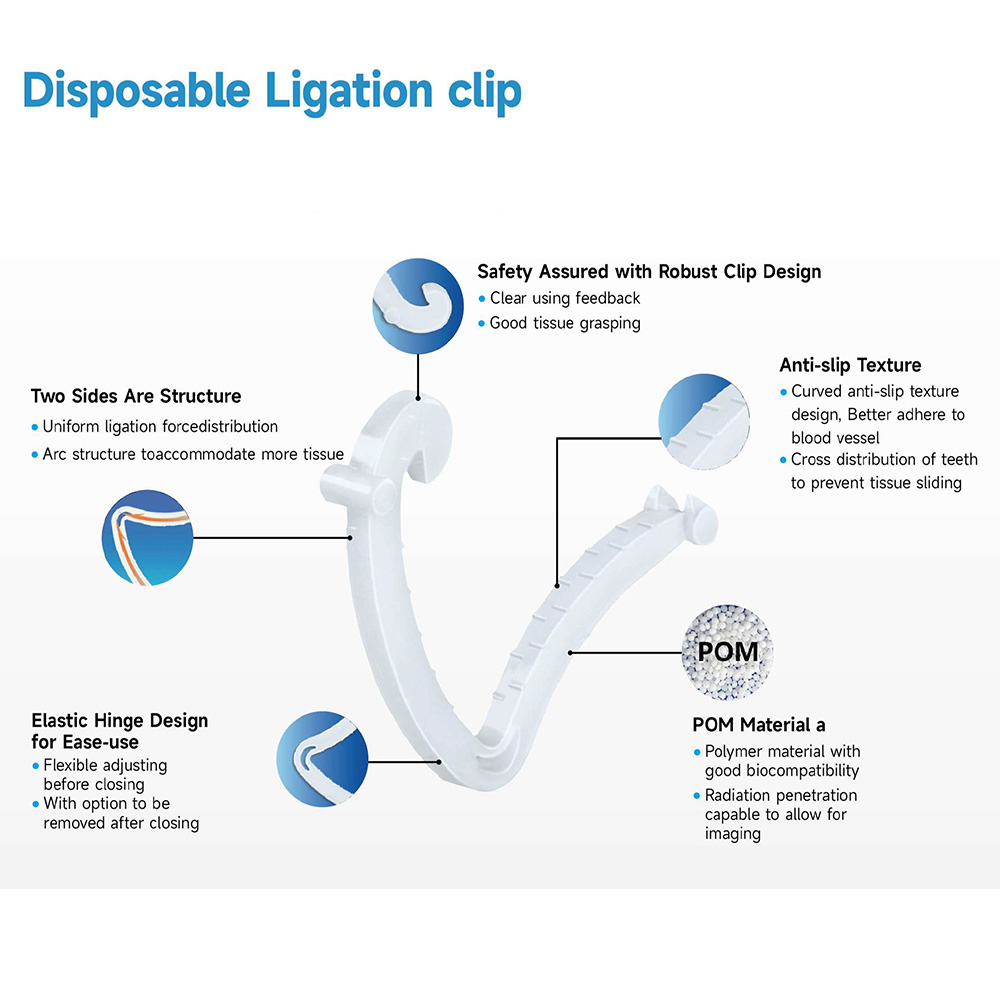

Robust Clip Design with Clear User Feedback – Each clip is engineered for reliable, secure ligation with audible and tactile feedback during closure, confirming proper application. This clear use feedback gives surgeons confidence that the clip has been fully and correctly deployed, reducing the risk of incomplete ligation and postoperative bleeding.

Excellent Tissue Grasping – The clip features curved anti-slip texture with cross-distributed teeth that provide superior adherence to blood vessels and tissues. This design effectively prevents tissue sliding during application and maintains secure positioning throughout the ligation process, ensuring consistent, reliable occlusion.

Uniform Ligation Force Distribution – The two-sided structural design ensures uniform ligation force distribution across the entire clip, providing consistent compression that achieves reliable hemostasis without crushing or damaging the vessel wall. The arc structure accommodates more tissue within the clip, making it suitable for a wider range of vessel sizes and tissue types.

Elastic Hinge Design for Ease of Use – The innovative elastic hinge allows flexible adjustment before final closure, enabling surgeons to reposition or remove the clip if necessary before committing to the ligation. This feature significantly reduces the risk of improper clip placement and provides an option to be removed after closing if required, offering flexibility in complex surgical scenarios.

POM Material with Excellent Biocompatibility – Manufactured from high-quality polymer material (POM), the clips offer excellent biocompatibility with minimal tissue reaction. The radiolucent construction enables clear postoperative imaging without artifacts, allowing for accurate assessment of the surgical site. The material is also resistant to corrosion and maintains its mechanical properties over time.

Comprehensive Sizing Options – Available in three sizes (Small, Medium, and Large) with ligation scopes of 3–10 mm, 5–13 mm, and 7–16 mm, accommodating vessel diameters from 1 mm to 10 mm. This comprehensive range ensures the appropriate clip size is available for every procedure, from delicate pediatric vessels to large vascular structures.

Sterile Ready-to-Use Packaging – Supplied sterile in convenient 6-unit packs, the clips are ready for immediate use in the operating room. The packaging protects the clips from contamination and ensures sterility until the moment of application.

Compatible with Multiple Trocar Sizes – The clips are designed for use with 5 mm and 10 mm trocars, accommodating both standard and minimally invasive surgical approaches. The dedicated clip appliers (ZSQ1, ZSQ2, ZSQ3) ensure precise clip placement and secure deployment.

Technical Specifications & Sizing

Size Range Overview

The Hemolok Clip System offers three clip sizes to accommodate a wide range of vessel diameters encountered in surgical procedures.

Detailed Dimension Table

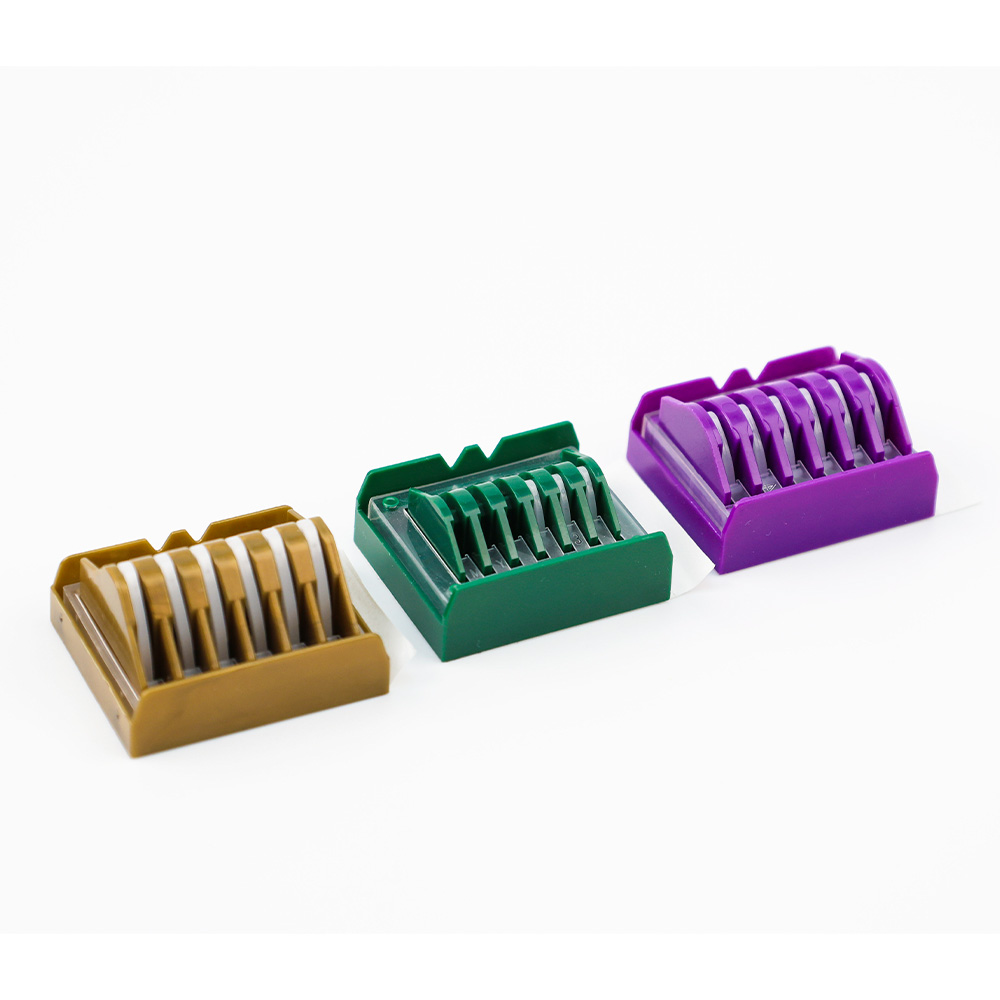

Ligation Clip	Clip Holder Color	Ligation Scope (mm)	Applicable Blood Vessel Diameter (mm)	Packaging	Applicable Clip Applier	Applicable Trocar

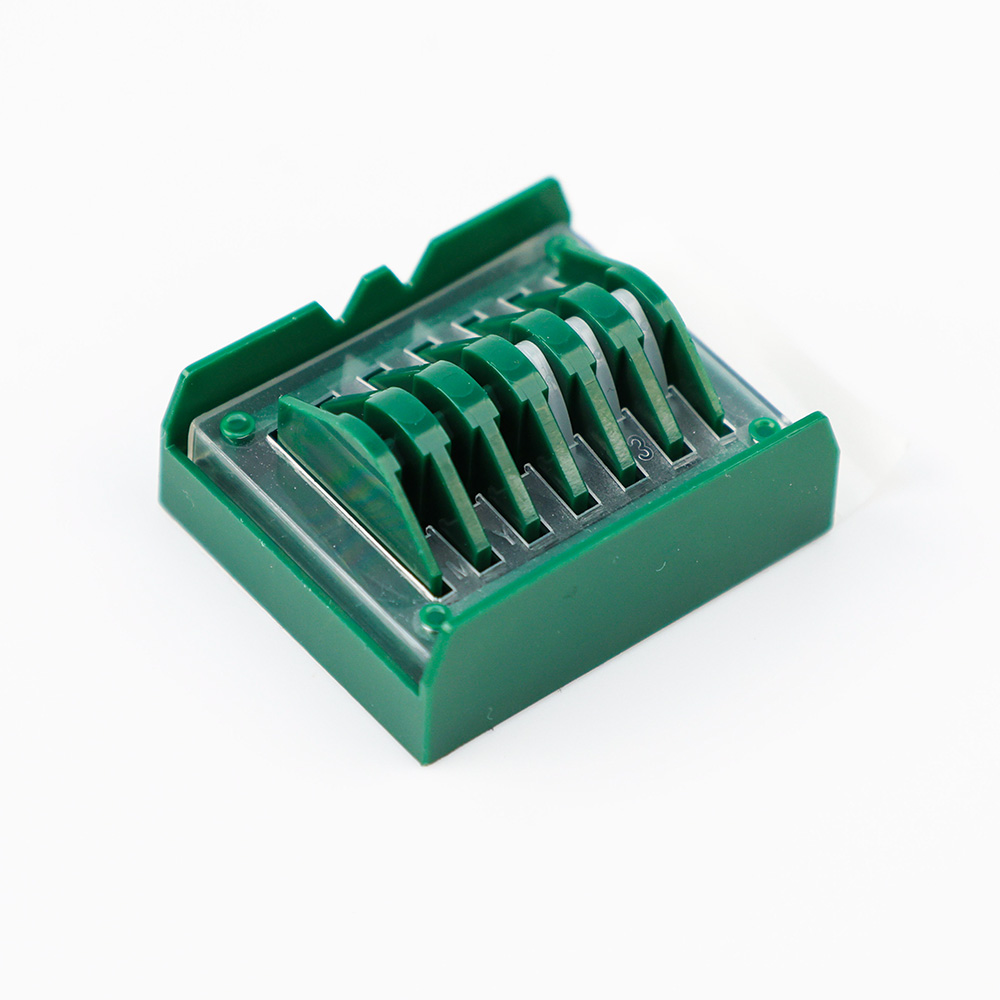

Small	Green	3–10	1–3	6 units/pc		5mm
Medium	Purple	5–13	2–7	6 units/pc		10mm

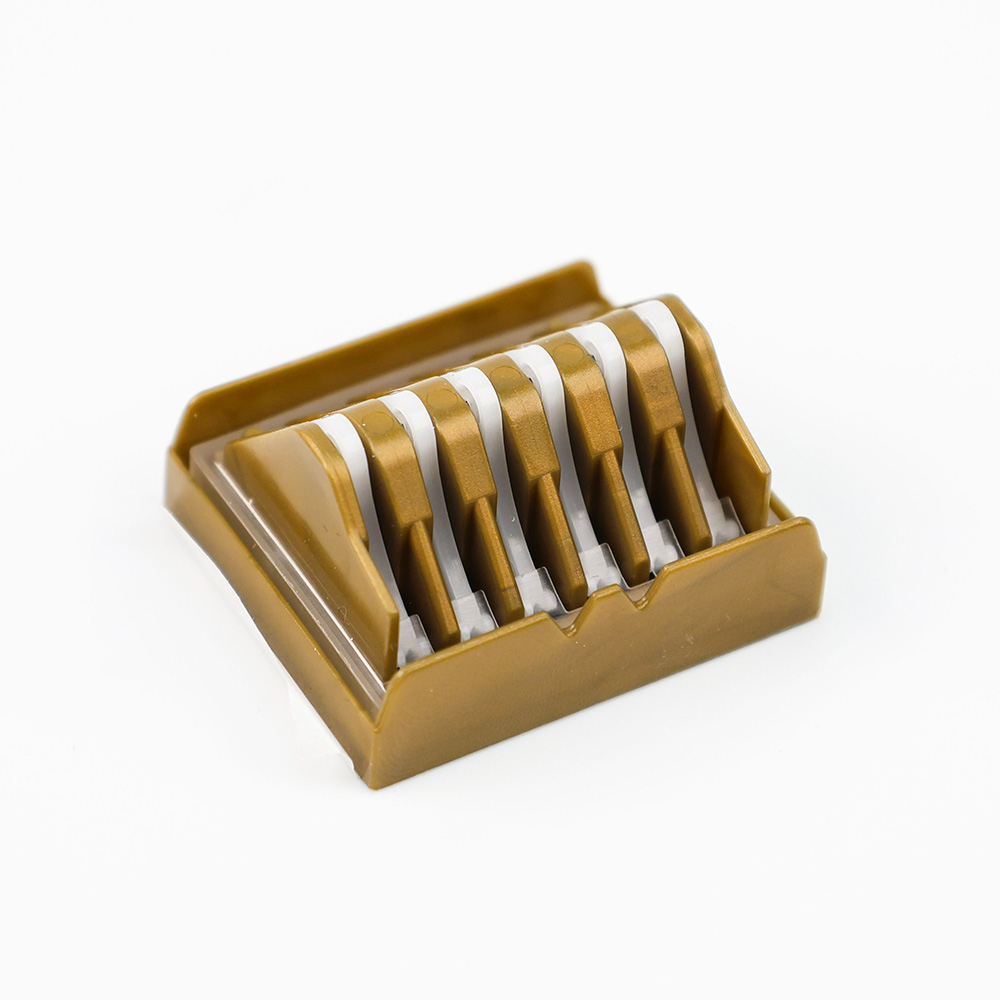

Large	Gold	7–16	3–10	6 units/pc		10mm

Note: All clips are supplied sterile, single-use, and individually packaged in 6-unit packs. The clip holder color aids rapid identification of the appropriate clip size during surgery. The ligation scope refers to the maximum tissue thickness the clip can accommodate, while the applicable vessel diameter range provides guidance for appropriate selection based on the vessel being ligated.

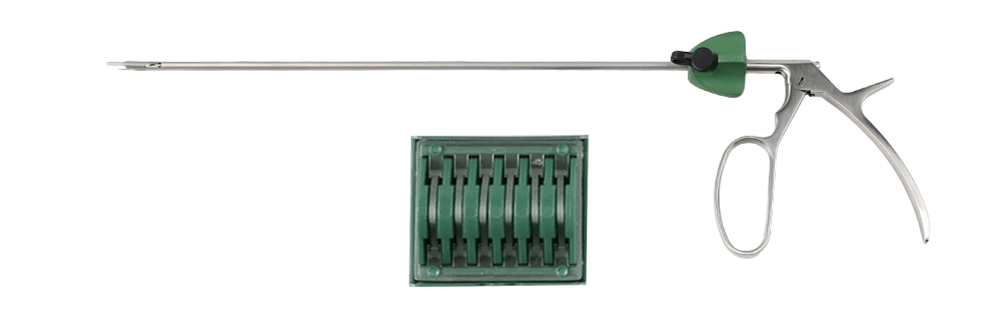

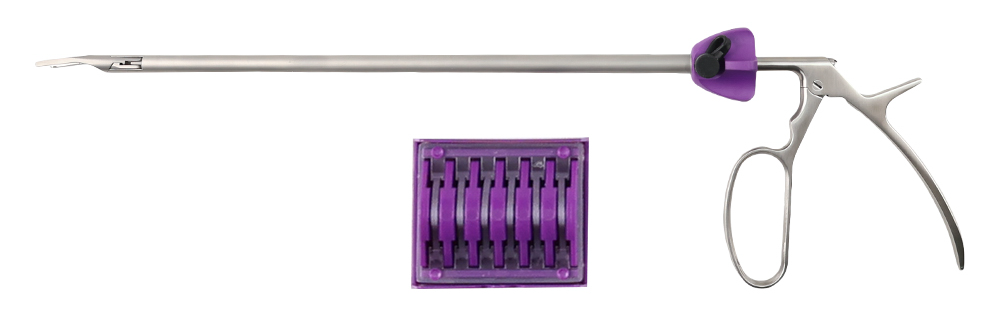

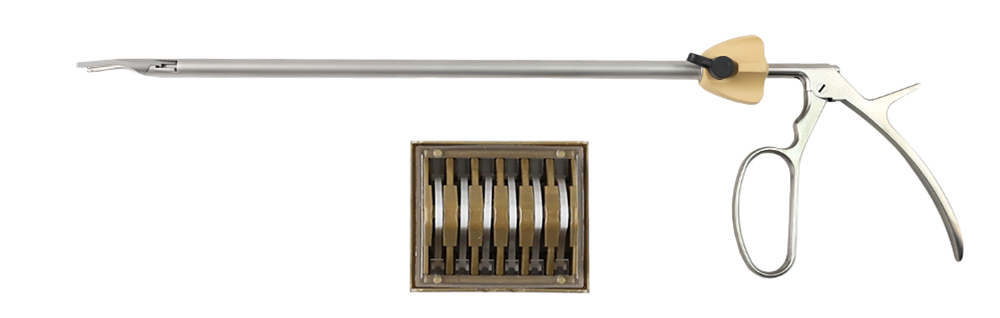

Recommended Companion Clip Appliers

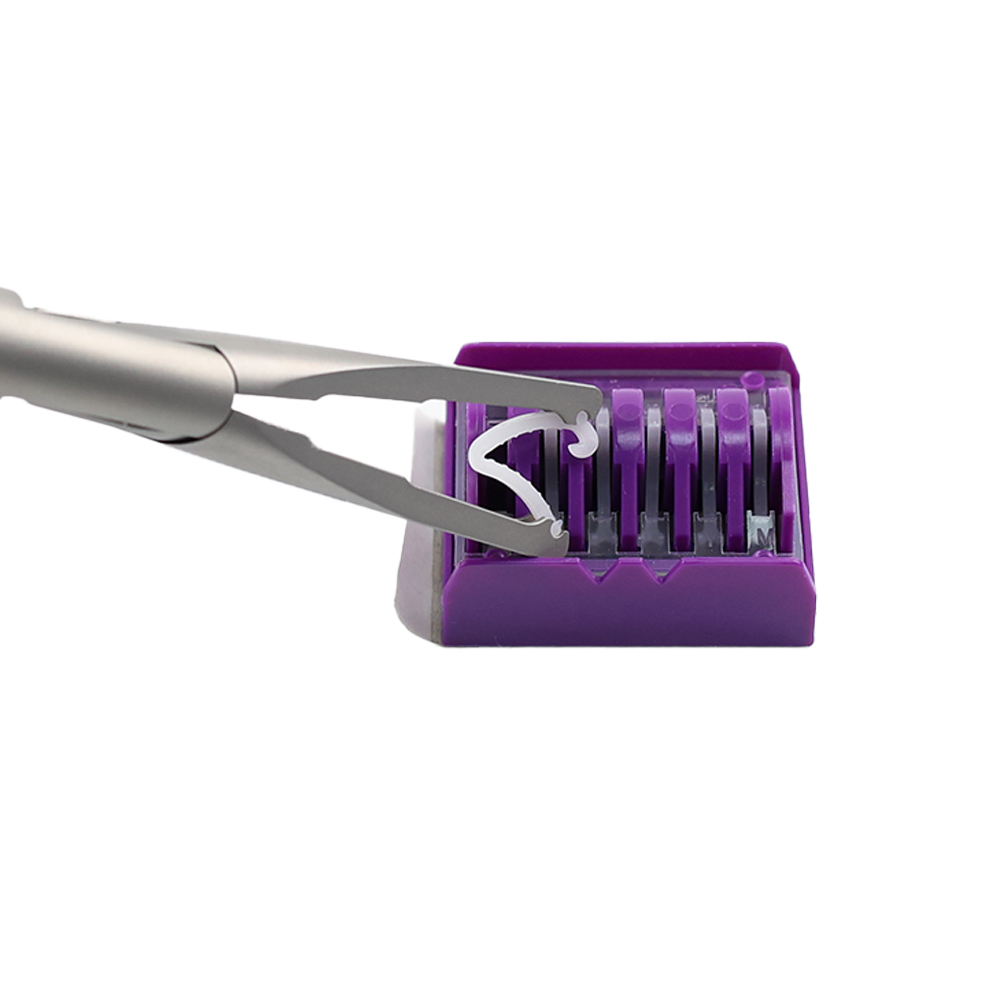

The Hemolok Clip System is designed for use with dedicated clip appliers that ensure precise, reliable clip placement and deployment. The following appliers are compatible with the Hemolok Clip System:

Note: The ZSQ series appliers are specifically designed for the Hemolok Clip System and are color-coded for rapid identification. The ZXA series appliers provide additional options for clip application. All appliers are designed for single-use or multiple-use depending on the model, with appropriate sterilization protocols for reusable instruments. The Φ5 mm applier is suitable for 5 mm trocars, while the Φ10 mm appliers are suitable for 10 mm trocars.

RFQ – Request for Quotation

Q1: What is the material of the Hemolok clips, and what are its advantages?
A: The Hemolok clips are manufactured from high-quality POM (polyoxymethylene), a polymer material with excellent biocompatibility and mechanical properties. The advantages of this material include: (1) Excellent biocompatibility with minimal tissue reaction, reducing the risk of inflammation or adhesion formation; (2) Radiolucency, enabling clear postoperative imaging without artifacts that could obscure the surgical site; (3) Resistance to corrosion and degradation, maintaining mechanical integrity over time; (4) Appropriate flexibility and strength for secure vessel ligation without crushing or damaging the vessel wall. The polymer construction also eliminates the risk of clip migration or tissue reaction associated with some metal clips.

Q2: What is the difference between the three clip sizes, and how do I select the appropriate size?
A: The three clip sizes are differentiated by their ligation scope (maximum tissue thickness accommodated) and applicable vessel diameter range. The Small (ZBJ-S-6) clip has a ligation scope of 3–10 mm and accommodates vessels 1–3 mm in diameter, suitable for delicate vessels and pediatric procedures. The Medium (ZBJ-M-6) clip has a ligation scope of 5–13 mm and accommodates vessels 2–7 mm in diameter, suitable for most general surgical vessel ligations. The Large (ZBJ-L-6) clip has a ligation scope of 7–16 mm and accommodates vessels 3–10 mm in diameter, suitable for larger vascular structures. Selection should be based on the vessel diameter, with the clip chosen to provide secure occlusion without excessive compression. We recommend using the smallest clip that will adequately accommodate the vessel.

Q3: Can the Hemolok clips be used in laparoscopic and open surgery?
A: Yes, the Hemolok Clip System is suitable for both laparoscopic and open surgical procedures. The clips are designed for use with 5 mm and 10 mm trocars, making them ideal for minimally invasive approaches, while the applier handles are also suitable for direct use in open surgery. The clips are compatible with standard laparoscopic instruments and can be used in a wide range of surgical specialties, including general surgery, gynecology, urology, thoracic surgery, and pediatric surgery.

Q4: What is the advantage of the elastic hinge design?
A: The elastic hinge design provides two significant advantages. First, it allows for flexible adjustment before final closure, enabling surgeons to reposition the clip if necessary before committing to the ligation. This reduces the risk of improper clip placement and improves surgical precision. Second, it provides the option to remove the clip after closing if required, offering flexibility in complex surgical scenarios where the clip may need to be repositioned or removed. The hinge design also ensures consistent, reliable closure force distribution across the entire clip, providing secure hemostasis without crushing the vessel wall.

Q5: What is the recommended storage condition and shelf life for the Hemolok clips?
A: The Hemolok clips are supplied sterile in their original packaging and should be stored in a cool, dry environment away from direct sunlight and extreme temperatures. The shelf life is typically 3–5 years from the date of manufacture, as indicated on the product labeling. We recommend checking the expiration date before use and disposing of any expired products. The packaging should remain intact until the time of use to ensure sterility.

Q6: Is there a minimum order quantity (MOQ) for the Hemolok clips, and what are the standard packaging configurations?
A: Our standard MOQ is 10 packs (60 units) per size, but we are happy to accommodate smaller trial quantities for hospitals evaluating the system for the first time. We offer a "mix-and-match" trial kit containing 5 packs of each size. The standard packaging configuration is 6 clips per pack, with 10 packs per box. The clips are supplied sterile and ready to use. The appliers are available separately and can be ordered individually or as part of a complete system kit. Please contact our export team to discuss specific order configurations and pricing for large-volume commitments.
