Geasure Medical
1
ISO 13485 \ CE \ FDA 510(k) Cleared \ Free Sale Certificate\ MDSAP
Titanium Alloy
Custom service supported
7–14 Days (OEM: 15–30 Days)
Sterile packaging or non-sterile

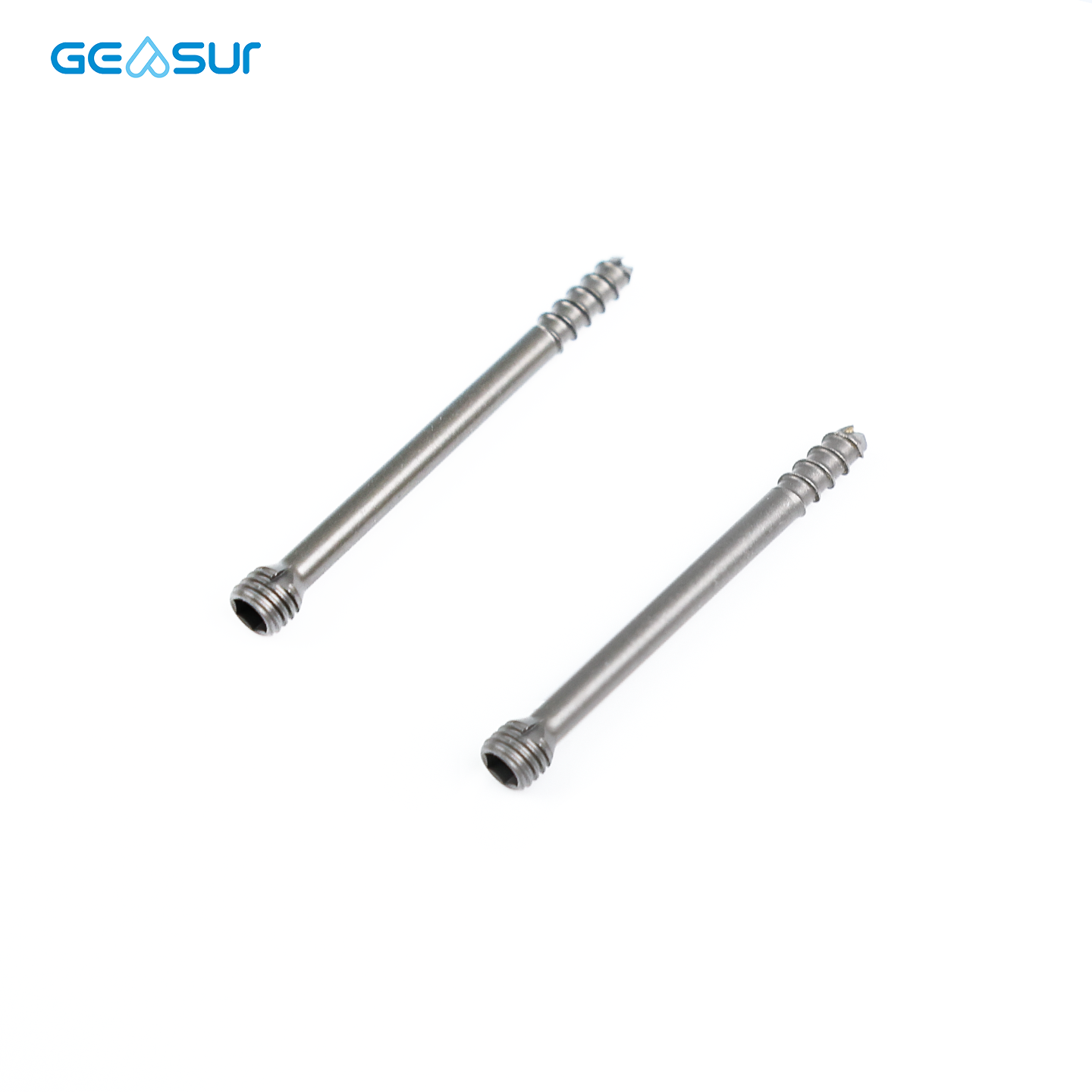

Headless Compression Screw · Orthopedic Implant

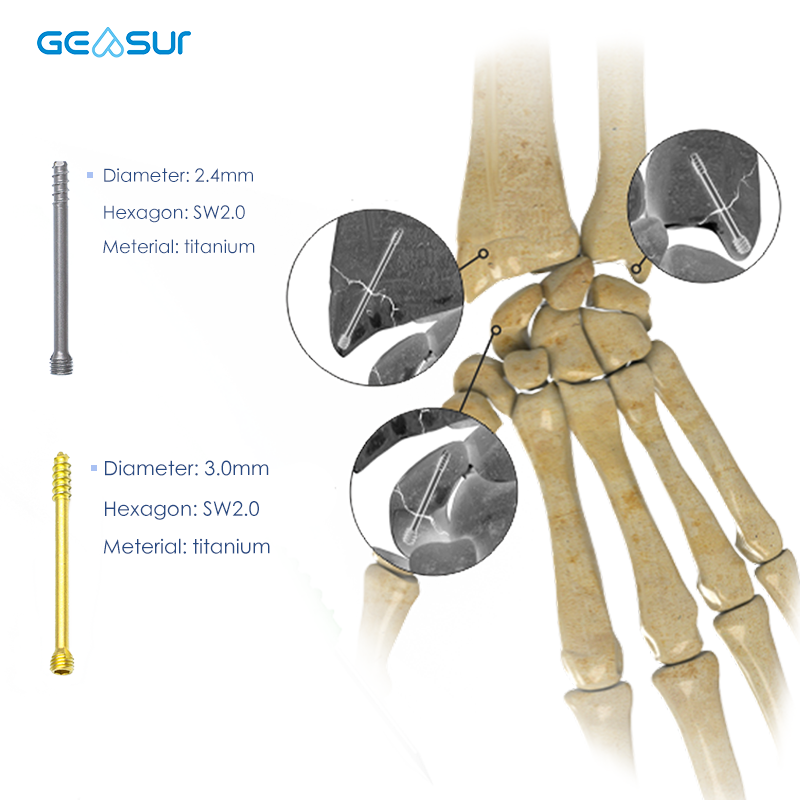

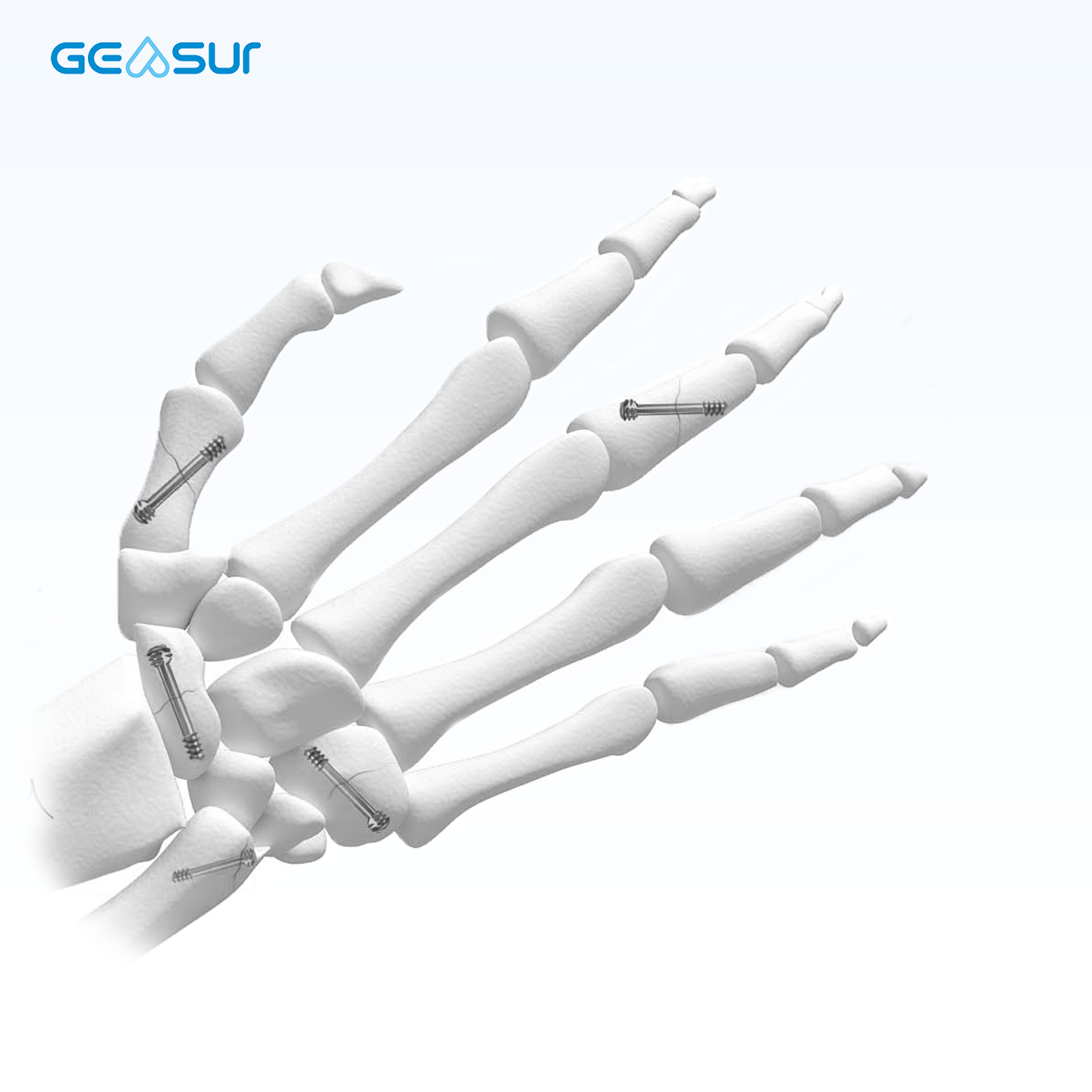

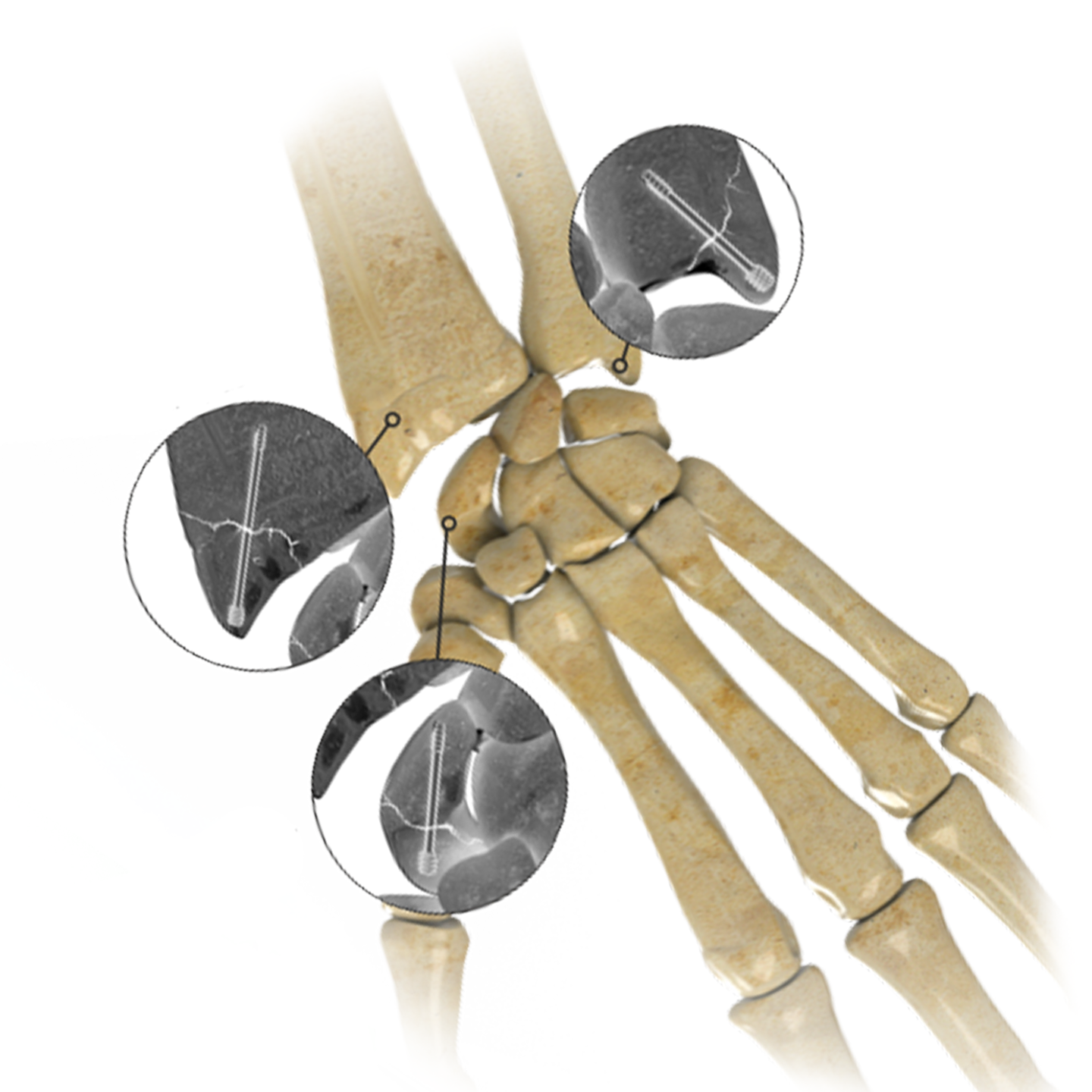

Geasure Medical's Herbert Screw System is designed for the fixation of selected bone fractures, small bone fragments, osteotomies, and arthrodesis procedures. Featuring a headless compression screw design, the system is intended to provide interfragmentary compression while allowing the implant to be positioned below the bone surface when properly implanted.

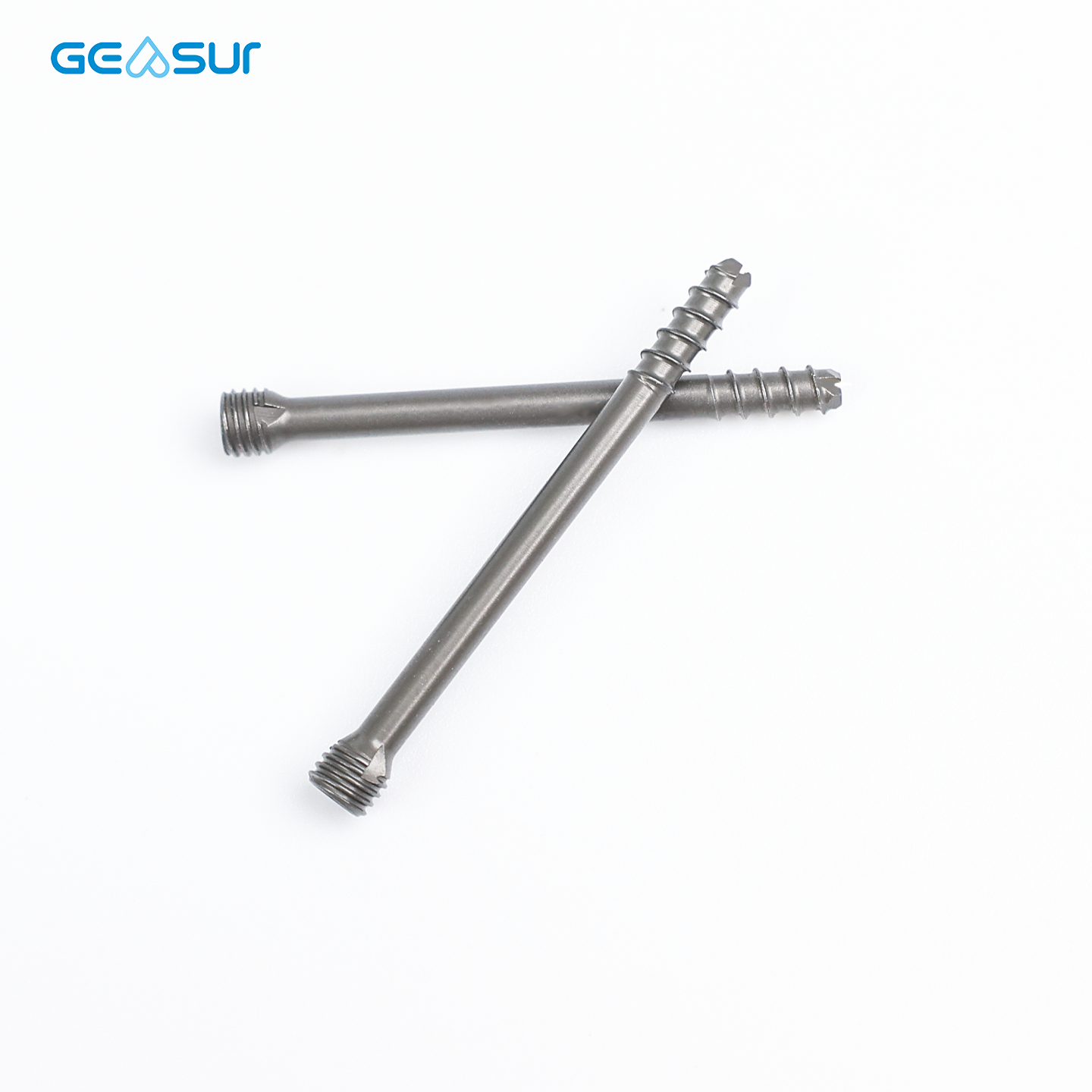

Depending on the specific configuration, the Herbert screw may incorporate a cannulated structure for guide-wire-assisted insertion and differential-pitch threads to facilitate compression across the fracture site. Available material options, screw diameters, lengths, and thread configurations can be confirmed according to the product specification.
As an orthopedic implant manufacturer, Geasure Medical supports distributors, medical device importers, and orthopedic brands with product selection, technical documentation, and OEM/ODM cooperation, subject to project evaluation and applicable regulatory requirements.
 | Headless, Low-Profile DesignThe headless configuration allows the screw to be seated below the bone surface when appropriate, helping minimize implant prominence and potential irritation to surrounding soft tissues. |

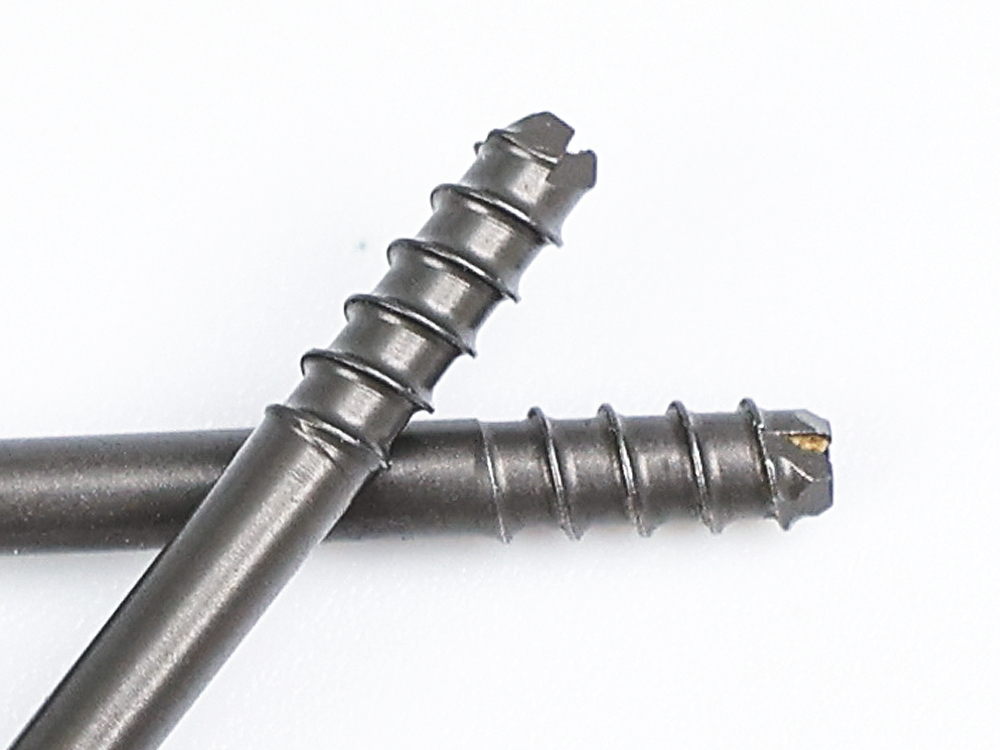

 | Interfragmentary CompressionSelected Herbert screw designs feature different thread pitches at the two ends. During insertion, this geometry can draw bone fragments together and generate compression across the fracture interface. |

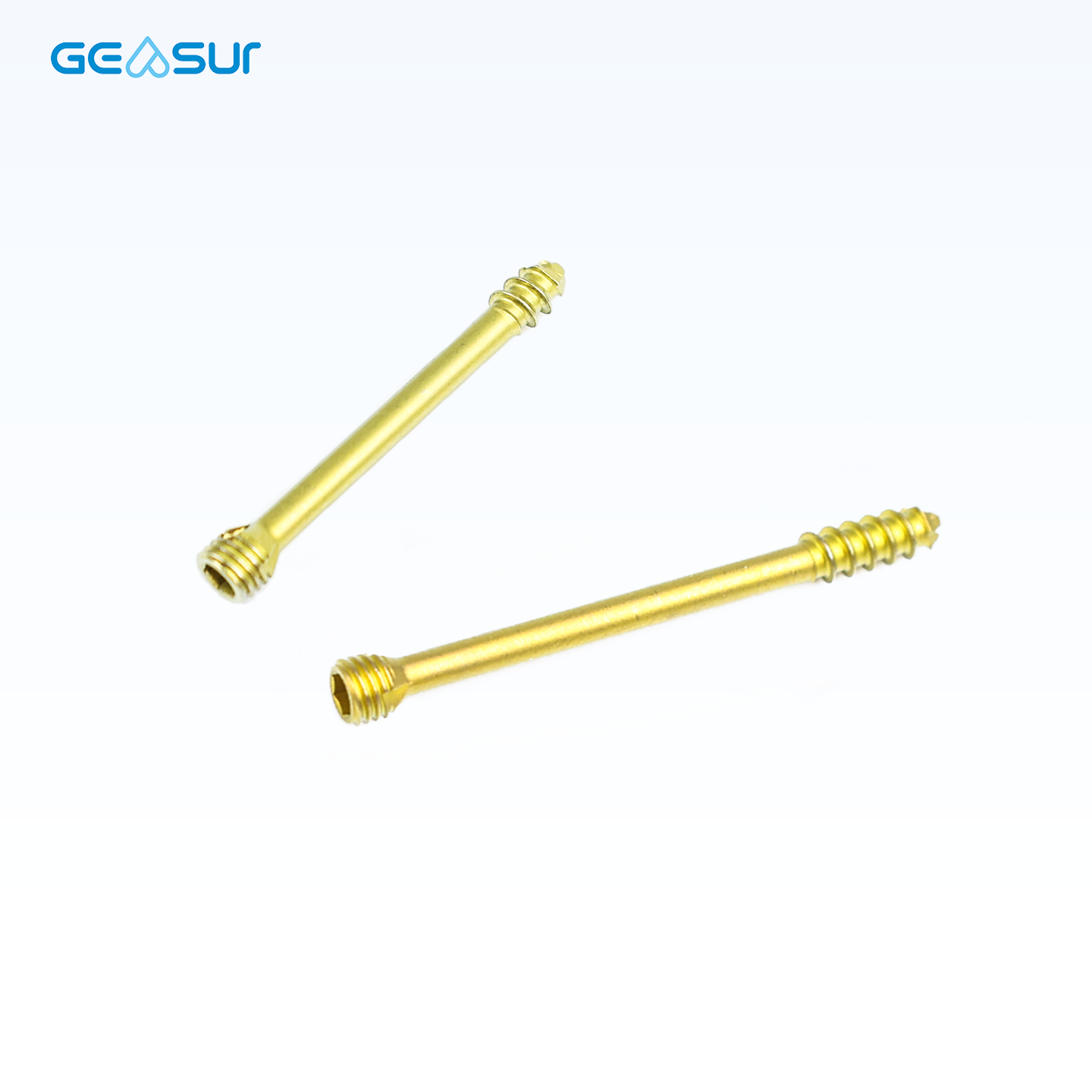

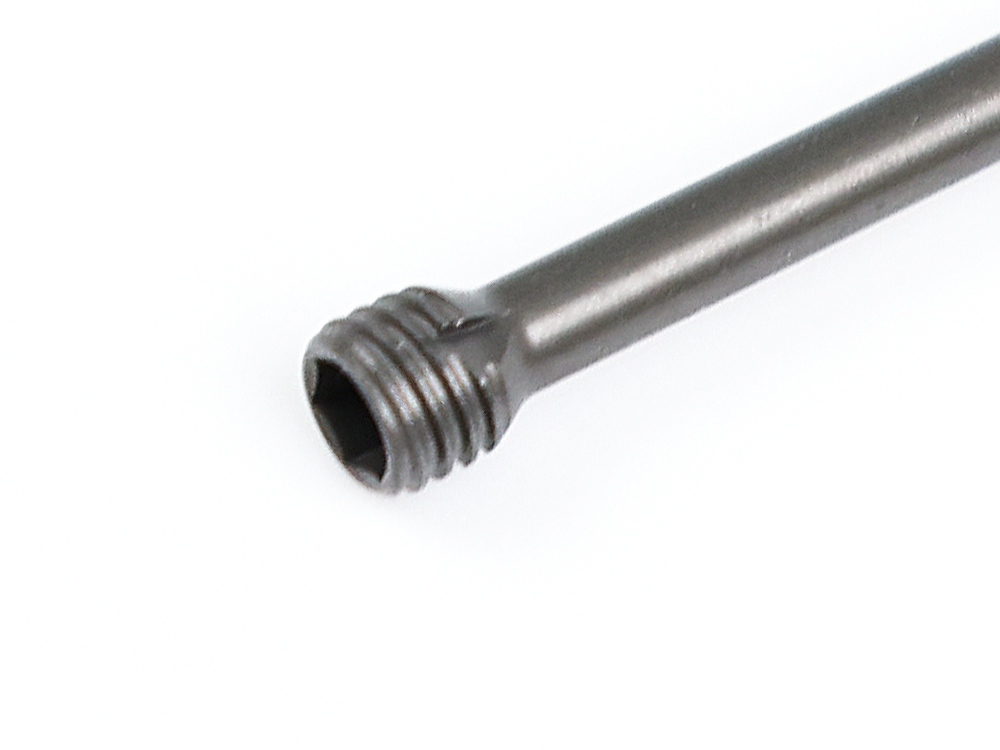

| Cannulated Insertion OptionFor cannulated configurations, a central channel allows the screw to be advanced over a guide wire. This supports controlled positioning along the planned insertion trajectory. |
| Multiple Size ConfigurationsA range of diameters, lengths, and thread configurations can support different product selection requirements. Exact availability should be confirmed against the current Geasure Medical product catalogue. |
No. | Product Code | Diameter (mm) | Length (mm) |
|---|---|---|---|
1 | 14122410 | 2.4 | 10 |
2 | 14122412 | 2.4 | 12 |
3 | 14122414 | 2.4 | 14 |
4 | 14122416 | 2.4 | 16 |
5 | 14122418 | 2.4 | 18 |
6 | 14122420 | 2.4 | 20 |
7 | 14122422 | 2.4 | 22 |
8 | 14122424 | 2.4 | 24 |
9 | 14122426 | 2.4 | 26 |
10 | 14122428 | 2.4 | 28 |
11 | 14122430 | 2.4 | 30 |
12 | 14123010 | 3.0 | 10 |
13 | 14123012 | 3.0 | 12 |
14 | 14123014 | 3.0 | 14 |
15 | 14123016 | 3.0 | 16 |
16 | 14123018 | 3.0 | 18 |
17 | 14123020 | 3.0 | 20 |
18 | 14123022 | 3.0 | 22 |
19 | 14123024 | 3.0 | 24 |
20 | 14123026 | 3.0 | 26 |
21 | 14123028 | 3.0 | 28 |
22 | 14123030 | 3.0 | 30 |
23 | 14123034 | 3.0 | 34 |
Serial number | Name | Type specification | Number | Code |
1 | Bone guide needle | Guide pin Φ1.0 | 2 | 90001251 |
2 | Bone guide needle | Thread guide pin Φ1.0 | 2 | 90001252 |
3 | Bone guide needle | Clean guide pin Φ1.0 | 1 | 90001253 |
4 | Depth sounder | Depth gauge Φ1.0 | 1 | 90001254 |
5 | Orthopedic drill sight | Guide Φ1.0/Φ2.0 | 1 | 90001255 |
6 | Quick change handle | Straight quick change connection handle | 1 | 90001182 |
7 | Quick change handle | Quickly change the connection handle 130 | 1 | 90001256 |
8 | Orthopedic clamp | Top pin sleeve 3.0 | 1 | 90001257 |
9 | Orthopedic clamp | Nail sleeve 2.4 | 1 | 90001258 |
10 | Orthopedic wrench | Screw up screwdriver SW2.0 | 2 | 90001259 |
11 | Orthopedic wrench | Top nail hollow screwdriver SW2.0 | 2 | 90001260 |
12 | Orthopedic bit | Hollow bone drill Φ2.0 | 2 | 90001261 |
13 | Screw holding pliers | Screw clamp 85 | 1 | 90000006 |
14 | Screw box | 1 | 90001262 | |
15 | Instrument box | 1 | 90001263 |
A concise overview of precision manufacturing, quality management, regulatory documentation, and OEM/ODM collaboration available to distributors and project partners.
A Japanese Mazak five-axis machining center supports complex surfaces, multi-angle features, and precision-fit structures while reducing repeated setups and supporting batch consistency.

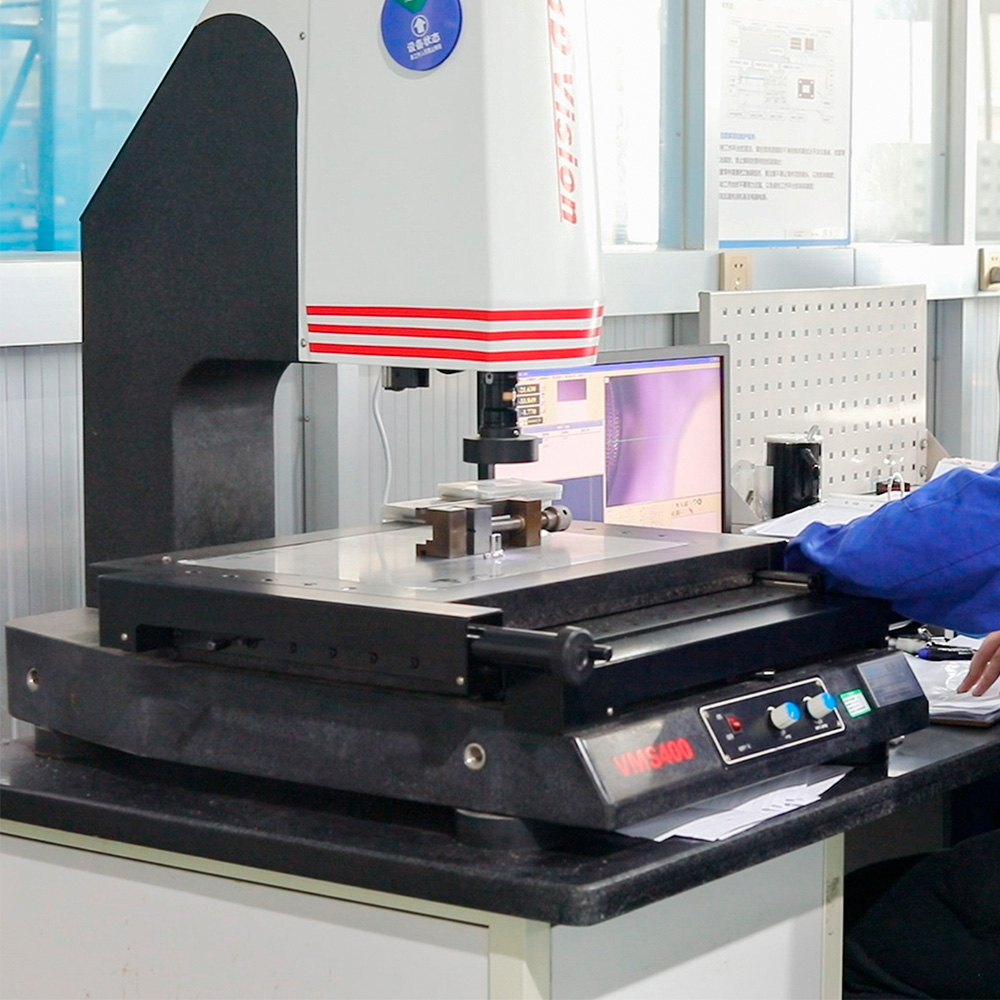

Quality activities cover incoming material verification, first-article review, in-process checks, final inspection, release, and traceable batch documentation.
Available regulatory support can be reviewed against the target product, model, classification, intended market, and current document validity before an order is placed.
Project communication may cover dimensions, instrument configuration, surface treatment, identification, packaging, documentation, technical feasibility, validation, quantity, cost, and lead time.
A headless compression cannulated screw is an orthopedic fixation implant designed to provide compression between suitable fracture fragments. Its headless design is intended to minimize implant prominence, while the cannulated design allows guidewire-assisted insertion when used with compatible instruments and surgical technique.
Cannulated compression screws provide interfragmentary compression and stable fixation, and are primarily used for small fragment, intra-articular, and epiphyseal fracture fixation. Initial fixation stability and its maintenance over time are key concerns for surgeons. Each screw design has its own advantages and limitations, and the optimal choice depends on the specific fracture pattern to achieve the best clinical outcome.
Titanium alloy
Headless compression screws are designed without a prominent traditional screw head and may use a differential thread design to generate compression during insertion. Conventional cannulated screws typically feature a distinct screw head. The choice of design depends on the anatomical site, fixation requirements, and surgical technique.
Yes. Geasure Medical welcomes B2B inquiries from orthopedic implant distributors, medical device importers, brand owners, and healthcare product suppliers. Please contact our team with your target market, purchasing requirements, and expected order volume to discuss product availability and collaboration options.
OEM/ODM requests are evaluated based on product design, technical specifications, regulatory requirements, and project scope. Distributors and brand owners may submit technical drawings, reference samples, or customization requirements for feasibility assessment.
To receive a more accurate quotation, please provide the required screw diameter and length, preferred material, estimated order quantity, target market, and any customization requirements. If available, please also attach product codes, specification sheets, or technical drawings.
Geasure Medical holds CE, FDA 510(k), and ISO 13485 certifications. Please advise your target country or region so our team can confirm the applicable product documents, registration information, and certification qualifications available. Regulatory compliance must be verified for each specific product.
1 piece
Mixed-size orders can be requested at the time of inquiry. Please provide a list of the required diameters, lengths, and quantities for each size so our team can check stock availability and prepare a corresponding quotation.
To discuss distribution cooperation, please provide your company profile, target market, products of interest, estimated annual demand, and relevant regulatory requirements. Geasure Medical welcomes inquiries from qualified medical device distributors regarding orthopedic implant sourcing and potential long-term collaboration.
