Features and Benefts:
The screw has an unrestricted/restricted screw combination to form a restricted front neck plate/unrestrictedfront neck plate/hybrid front neck plate fixation system.
 |
Changzhou Geasure Medical Apparatus and Instruments Co., Ltd. | |||
| Anterior cervical plate | ||||
| Name | Picture | Specification | Material | Code |
| Anterior cervical plate-1 | |
19 | TC4 | 27000019 |
| 21 | TC4 | 27000021 | ||
| 23 | TC4 | 27000023 | ||
| 25 | TC4 | 27000025 | ||
| 27.5 | TC4 | 27000027 | ||
| 30 | TC4 | 27000030 | ||
| 32.5 | TC4 | 27000032 | ||
| 35 | TC4 | 27000035 | ||
| 37.5 | TC4 | 27000037 | ||
| 40 | TC4 | 27000040 | ||
| 42.5 | TC4 | 27000042 | ||
| 45 | TC4 | 27000045 | ||
| 47.5 | TC4 | 27000047 | ||
| 50 | TC4 | 27000050 | ||
| 52.5 | TC4 | 27000052 | ||
| 55 | TC4 | 27000055 | ||
| 57.5 | TC4 | 27000057 | ||
| 60 | TC4 | 27000060 | ||
| 62.5 | TC4 | 27000062 | ||
| 65 | TC4 | 27000065 | ||
| 67.5 | TC4 | 27000067 | ||
| 70 | TC4 | 27000070 | ||
| 72.5 | TC4 | 27000072 | ||
| 75 | TC4 | 27000075 | ||

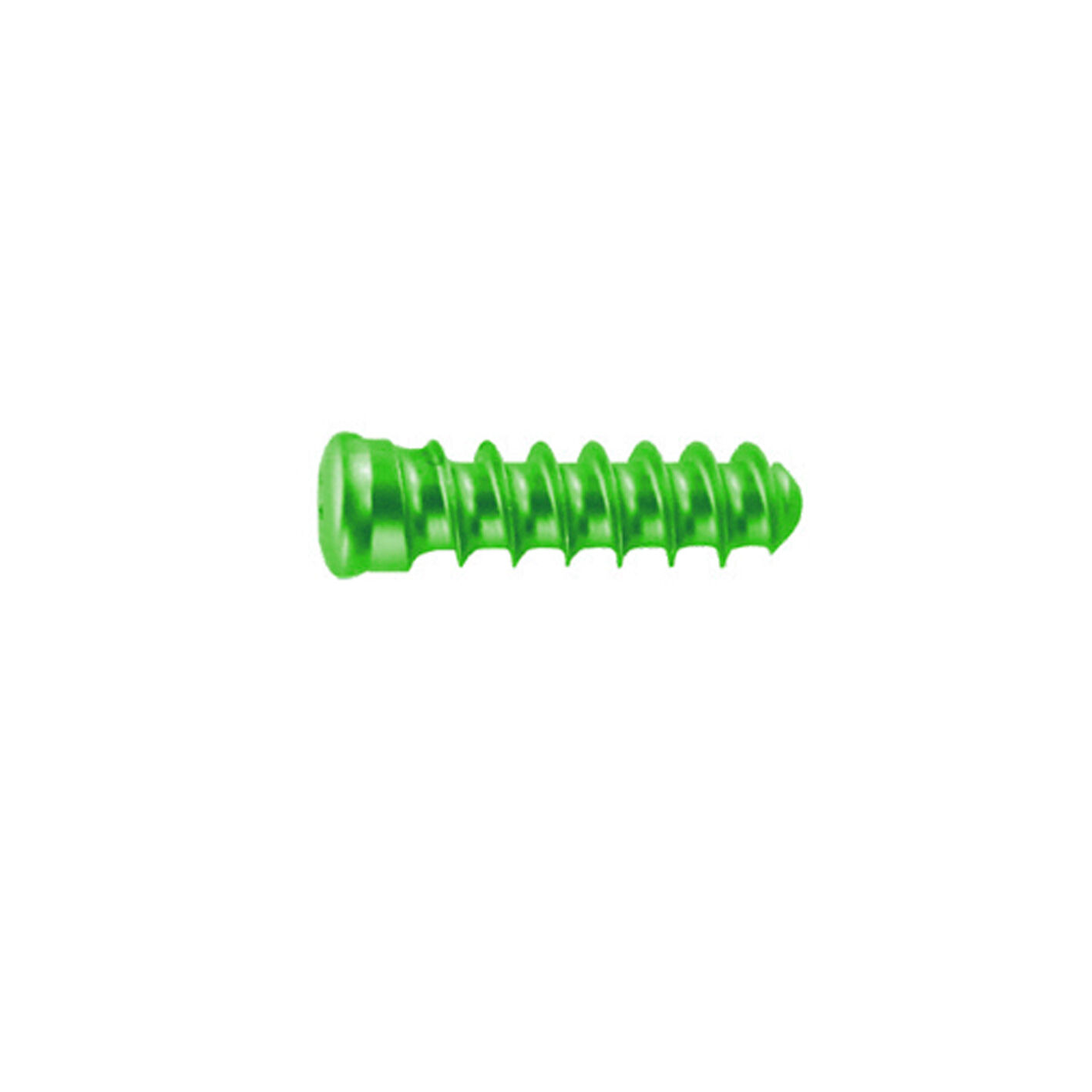

| Variable-angle self-tapping screw |  |
4.0*12 | TC4 | 27001212 |
| 4.0*14 | TC4 | 27001214 | ||
| 4.0*16 | TC4 | 27001216 | ||

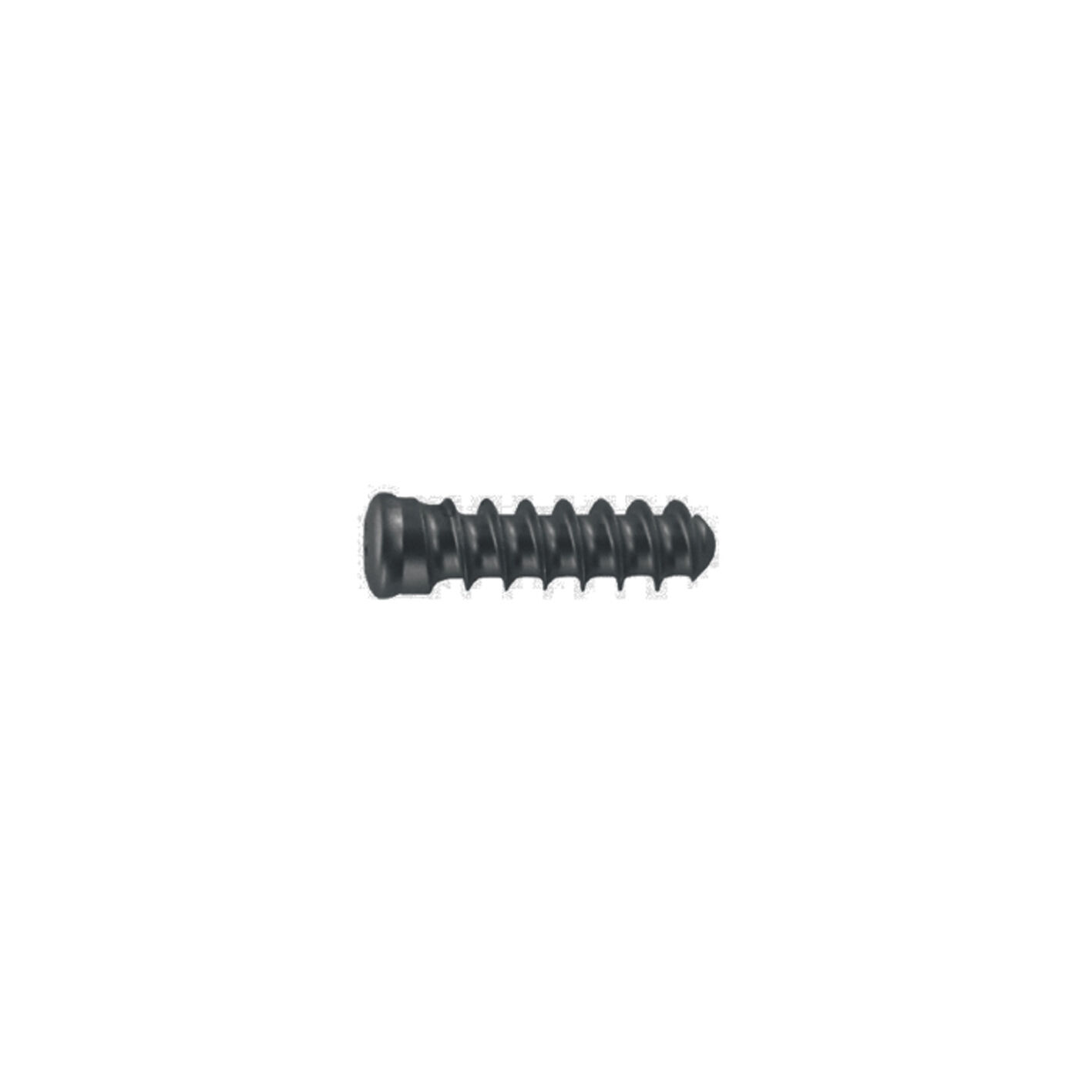

| Fixed-angle self-tapping screw |  |
4.0*12 | TC4 | 27001412 |
| 4.0*14 | TC4 | 27001414 | ||
| 4.0*16 | TC4 | 27001416 | ||

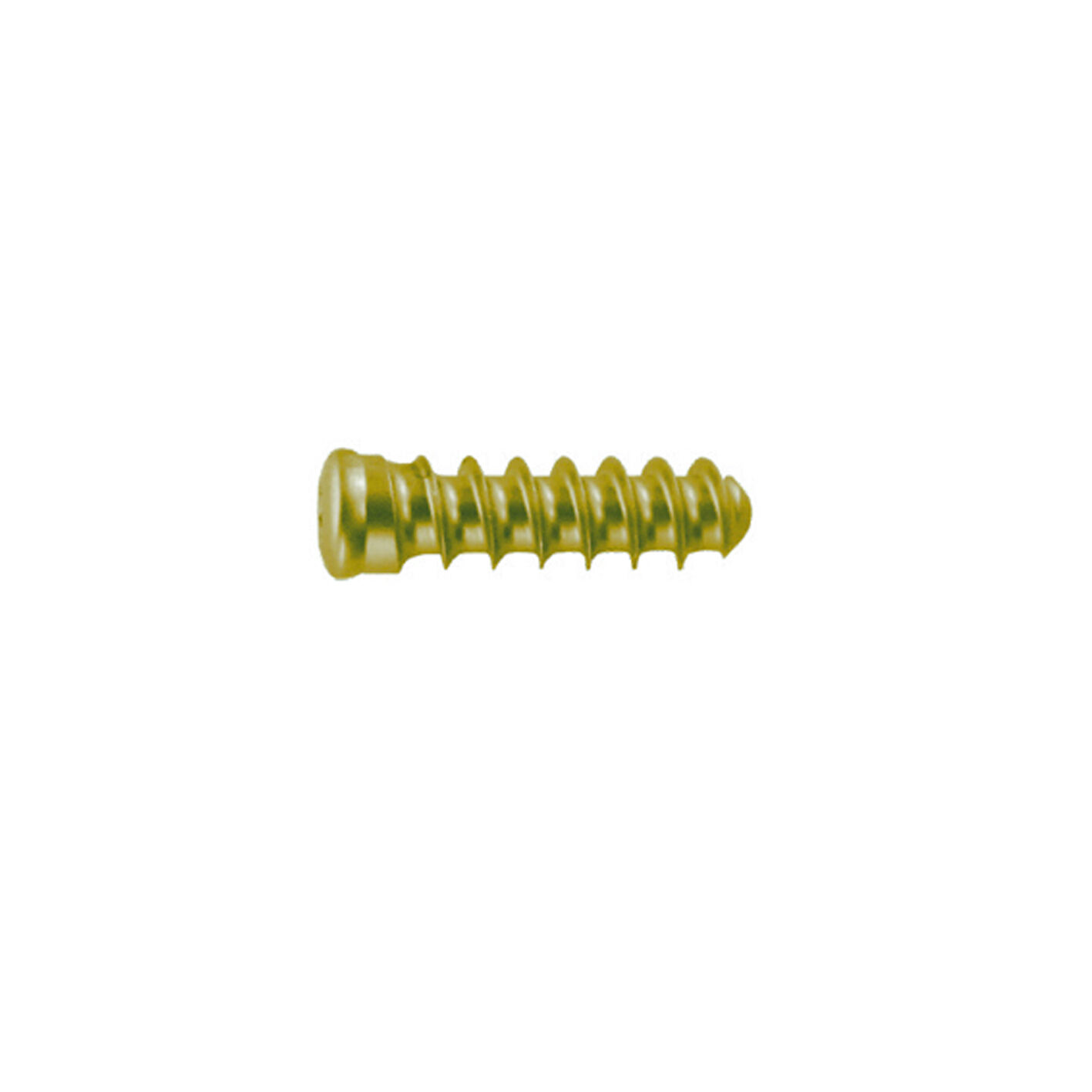

| Variable-angle self-tapping screw |  |
4.5*12 | TC4 | 27001312 |
| 4.5*14 | TC4 | 27001314 | ||
| 4.5*16 | TC4 | 27001316 | ||
| Fixed-angle self-tapping screw |  |
4.5*12 | TC4 | 27001512 |
| 4.5*14 | TC4 | 27001514 | ||
| 4.5*16 | TC4 | 27001516 | ||

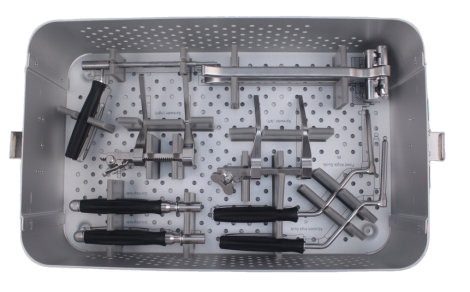

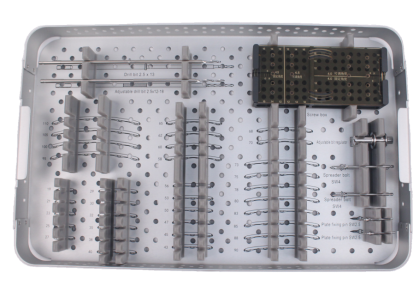

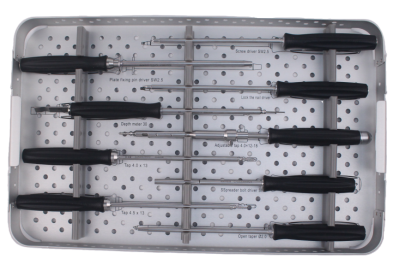

| Anterior cervical plate Instrument | |||
| Name | Specification | Quantity | code |
| Plate bending pliers | Plate bending pliers | 1 | 90011601 |
| Fixed needle | Plate fixing pin SW2.5 | 2 | 90011602 |
| Orthopedic wrench | Plate fixing pin driver SW2.5 | 1 | 90011603 |
| Plate holder | Plate holder | 1 | 90011604 |
| Orthopedic drill sight | Fixed Angle Guide 85 | 1 | 90011605 |
| Orthopedic drill sight | Adjustable Angle Guide 85 | 1 | 90011606 |
| Orthopedic bit | Drill bit 2.5 x 13 | 1 | 90011607 |
| Measuring apparatus | Depth meter 30 | 1 | 90011608 |
| Quick-load handle | Quick-change handle | 2 | 90011609 |
| tap | Tap 4.0 x 13 | 1 | 90011610 |
| tap | Thread tap 4.5 x 13 | 1 | 90011611 |
| Orthopedic wrench | Screw driver SW2.5 | 1 | 90011612 |
| Orthopedic wrench | Lock the nail driver | 1 | 90011613 |
| Orthopedic bit | Adjustable drill bit 2.5x12-18 | 1 | 90011614 |
| sheath | Adjustable bit regulator | 1 | 90011615 |
| tap | Adjustable tap 4.0×12-18 | 1 | 90011616 |
| Vertebral spreader | Spreader (left) | 1 | 90011617 |
| Fixed needle | Spreader bolt SW4 | 2 | 90011618 |
| Orthopedic wrench | Spreader bolt driver SW4 | 1 | 90011619 |
| Open cone | Open taper φ2.0 | 1 | 90011620 |
| Vertebral spreader | Spreader (right) | 1 | 90011621 |
| Screw box | 1 | 90011622 | |
| Instrument box | 1 | 90011623 | |
One-step locking technique,
simple and reliable.
The plate is 2.3mm thin,minimizing protrusion.
Large window designforeasy observationof bone graft.
Features and Benefts:
Confined/semi-confined dynamically fixed structures
The screw has an unrestricted/restricted screw combination to form a restricted front neck plate/unrestrictedfront neck plate/hybrid front neck plate fixation system.
The screws are self - tapping screws/self - drilling screws/standard screws and revision screws
The locking mode is pressing plate type and extrusion type, which are single action locking mode, simple operation,reliable and safe.
