Mini intramedullary Nail

	Changzhou Geasure Medical Apparatus and Instruments Co., Ltd.
Intramedullary Nail System
Product	Picture	Specification	Material	Code
Mini Nail

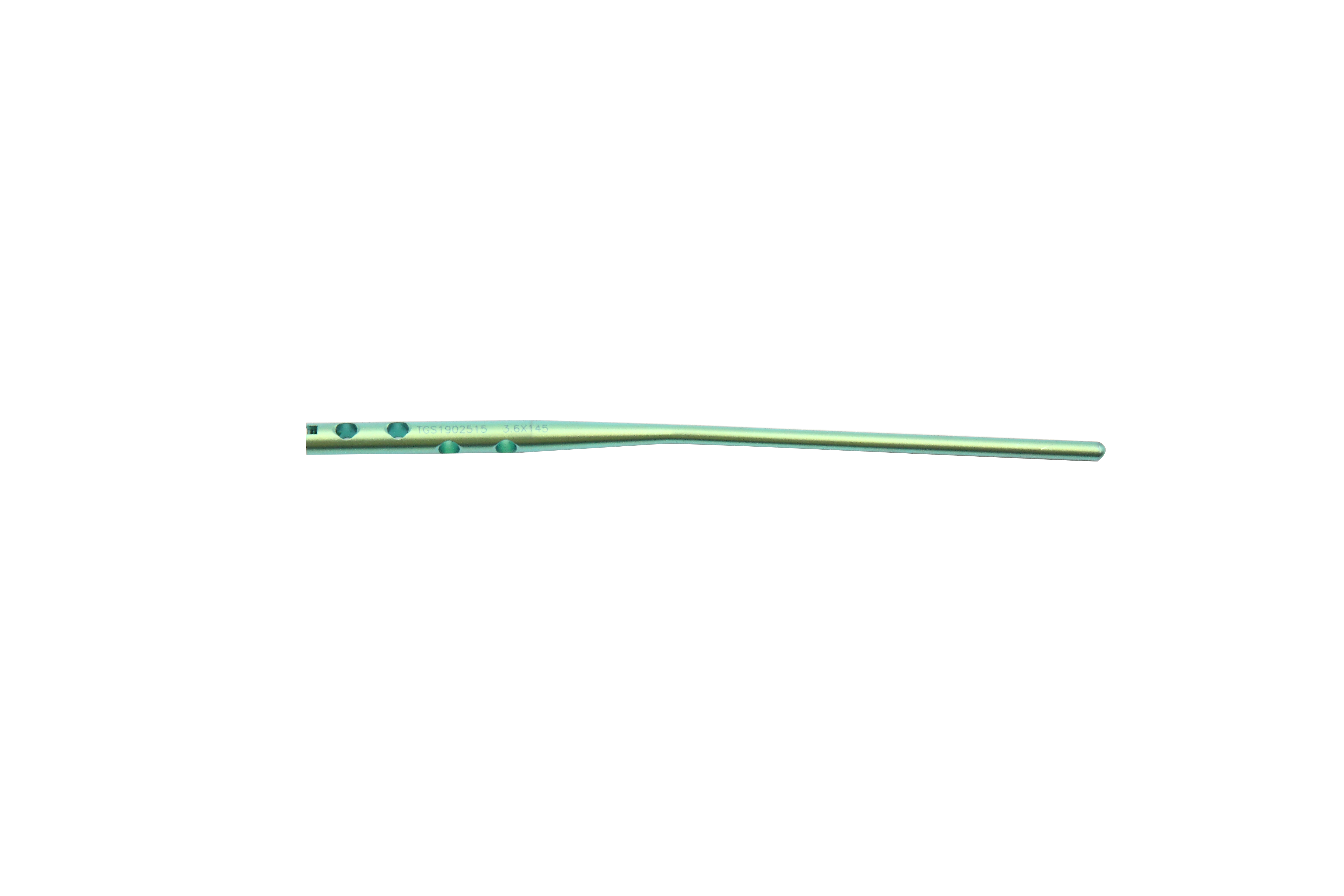

Mini Nail-Ulna Nail		3.0×190	TA	15803190
		3.0×200	TA	15803200
		3.0×210	TA	15803210
		3.0×220	TA	15803220
		3.0×230	TA	15803230
		3.0×240	TA	15803240
		3.0×250	TA	15803250
		3.0×260	TA	15803260
		3.0×270	TA	15803270
		4.0×190	TA	15804190
		4.0×200	TA	15804200
		4.0×210	TA	15804210
		4.0×220	TA	15804220
		4.0×230	TA	15804230
		4.0×240	TA	15804240
		4.0×250	TA	15804250
		4.0×260	TA	15804260
		4.0×270	TA	15804270

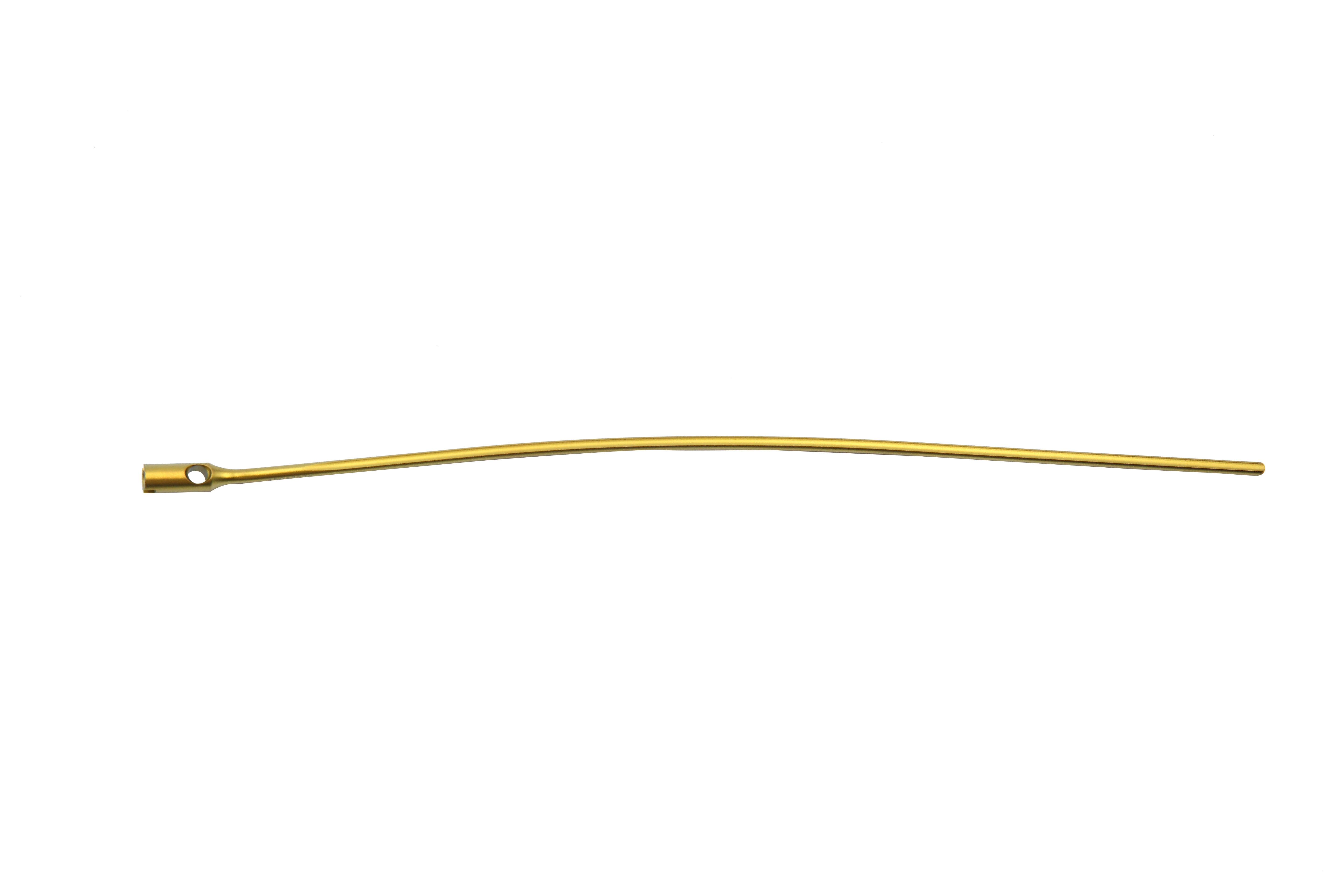

Mini Nail-Radius Nail		3.0×190	TA	15843190
		3.0×200	TA	15843200
		3.0×210	TA	15843210
		3.0×220	TA	15843220
		3.0×230	TA	15843230
		3.0×190	TA	15843191
		3.0×200	TA	15843201
		3.0×210	TA	15843211
		3.0×220	TA	15843221
		3.0×230	TA	15843231
		3.6×190	TA	15843790
		3.6×200	TA	15843800
		3.6×210	TA	15843810
		3.6×220	TA	15843820
		3.6×230	TA	15843830
		3.6×190	TA	15843791
		3.6×200	TA	15843801
		3.6×210	TA	15843811
		3.6×220	TA	15843821
		3.6×230	TA	15843831
Mini Nail-Fibula Nail		3.0×145	TA	15883145
		3.0×180	TA	15883180
		3.6×145	TA	15883745
		3.6×180	TA	15883780

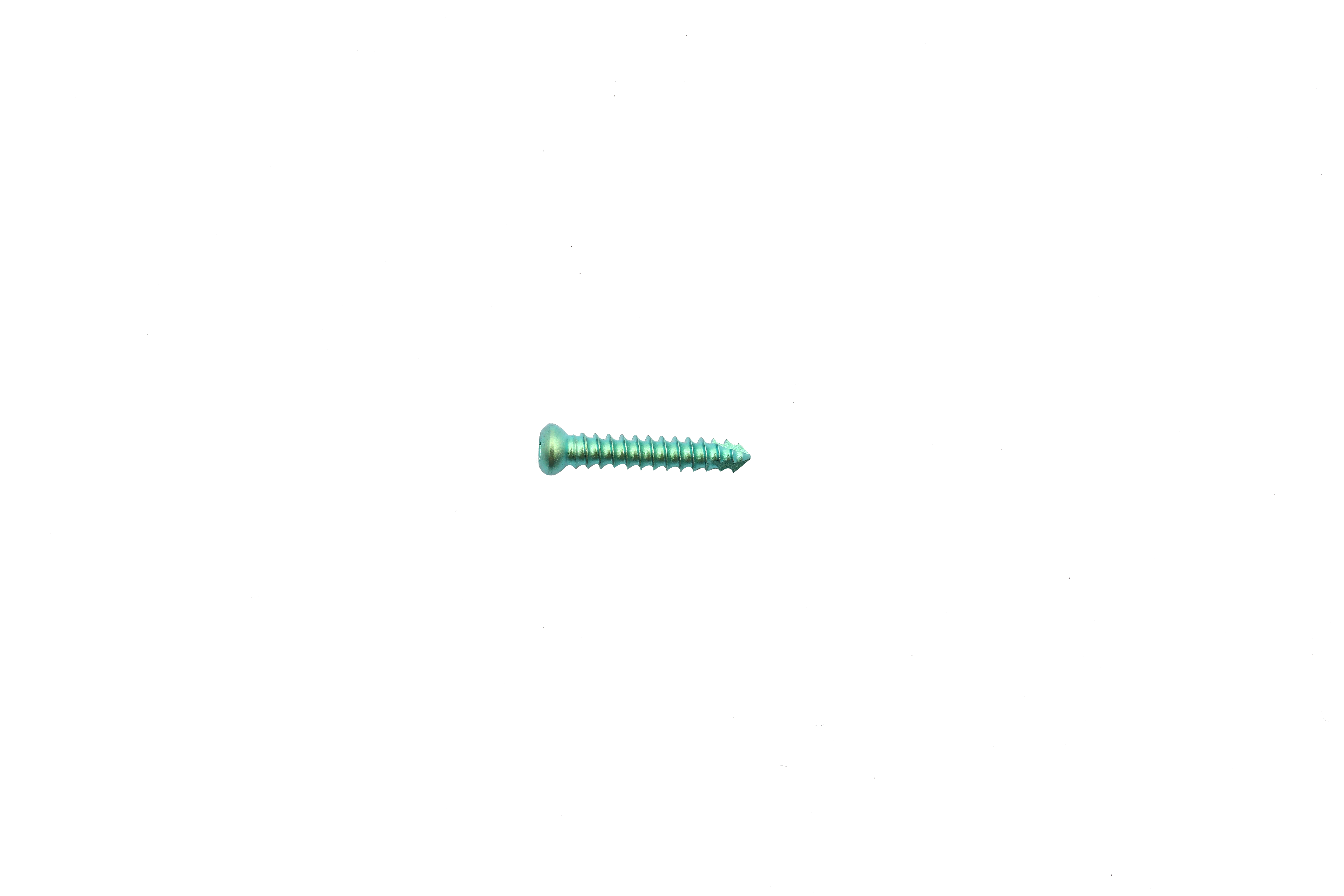

Mini Nail Φ3.5 Locking Screw		3.5×12	TA	15803620
		3.5×14	TA	15803640
		3.5×16	TA	15803660
		3.5×18	TA	15803680
		3.5×20	TA	15803700
		3.5×22	TA	15803720
		3.5×24	TA	15803740
		3.5×26	TA	15803760
		3.5×28	TA	15803780
		3.5×30	TA	15803800
		3.5×32	TA	15803820
		3.5×34	TA	15803840
		3.5×36	TA	15803860
		3.5×38	TA	15803880
		3.5×40	TA	15803900
		3.5×42	TA	15803920
		3.5×44	TA	15803940
		3.5×46	TA	15803960
		3.5×48	TA	15803980
		3.5×50	TA	15804000
		3.5×52	TA	15803552
		3.5×54	TA	15803554
		3.5×56	TA	15803556
		3.5×58	TA	15803558
		3.5×60	TA	15803560

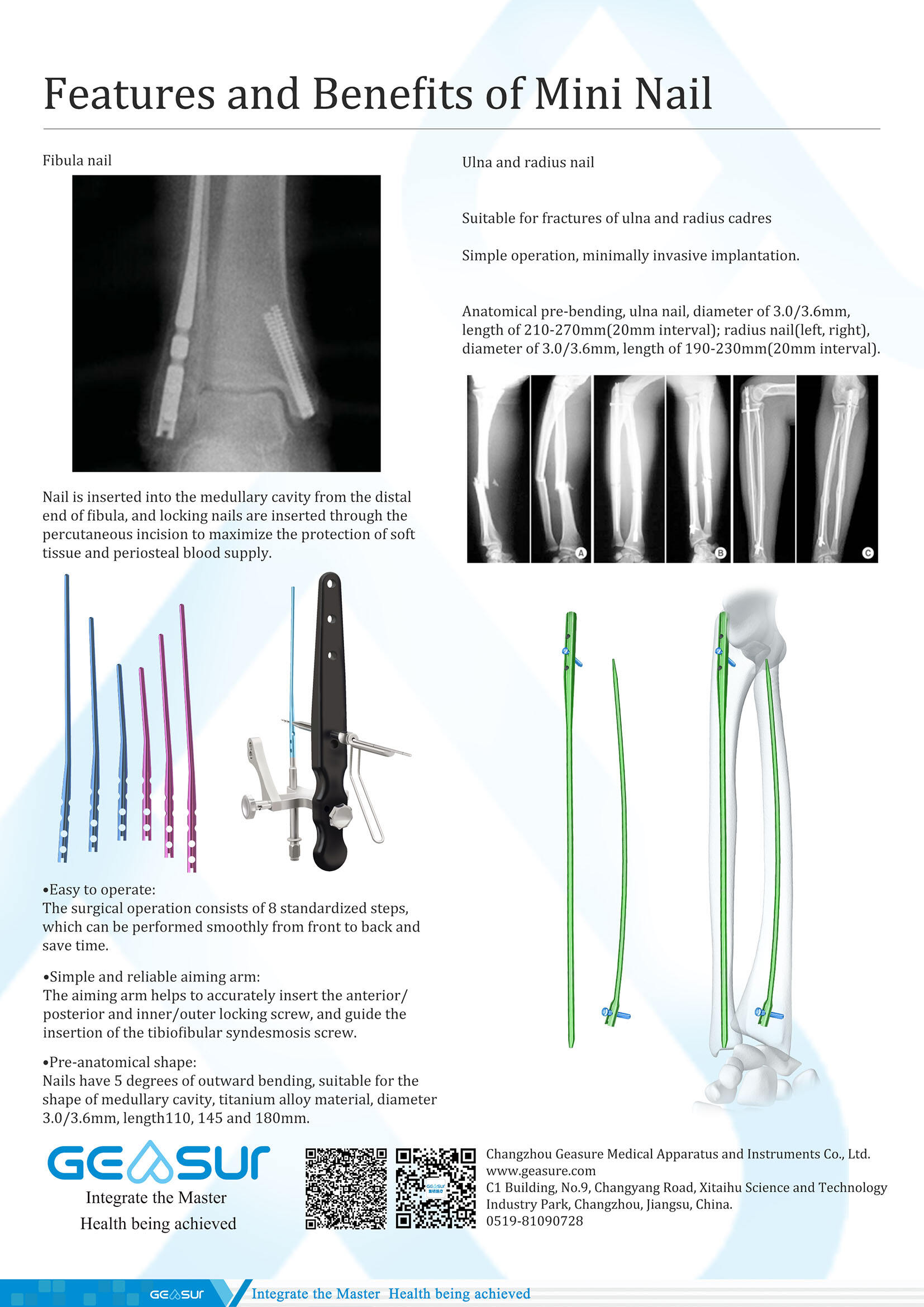

Features and Benefits of Mini Nail

The surgical operation consists of 8 standardized steps, which can be performed smoothly from front to back and save time.

●  Simple and reliable aiming arm:

The aiming arm helps to accurately insert the anterior/ posterior and inner outer locking screw, and guide the insertion of the tibiofibular syndesmosis screw.

●  Pre-anatomical shape:

Nails have 5 degrees of outward bending, suitable for the shape of medullary cavity ,titanium alloy material, diameter 3.0/3.6 mm, length 110, 145 and 180 mm.
