| Warranty | Lifetime |
| After-sale Service | Return and Replacement |
Industry-specific attributes
| Warranty | Lifetime |
| After-sale Service | Return and Replacement |
Other attributes
| Place of Origin | Jiangsu, China |
| Instrument classification | Class III |
| Properties | Implant Materials & Artificial Organs |
| Brand Name | geasure |
| Model Number | PFNA Intramedullary nail instrument |
| Licence Number | Can consult |

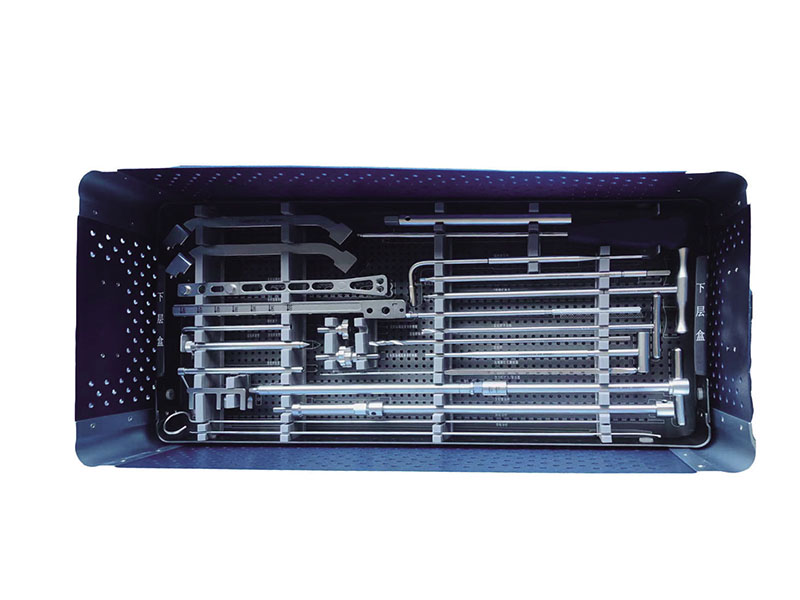

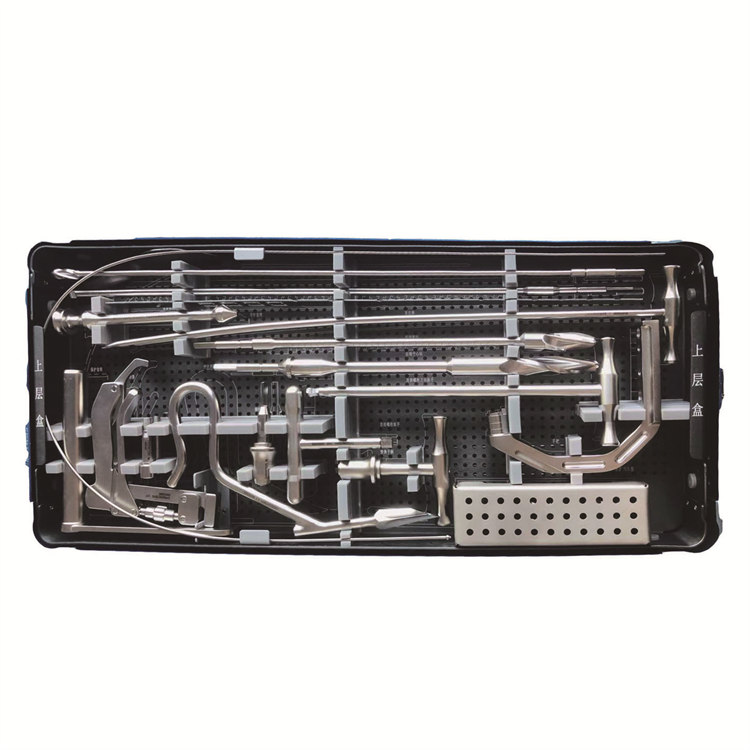

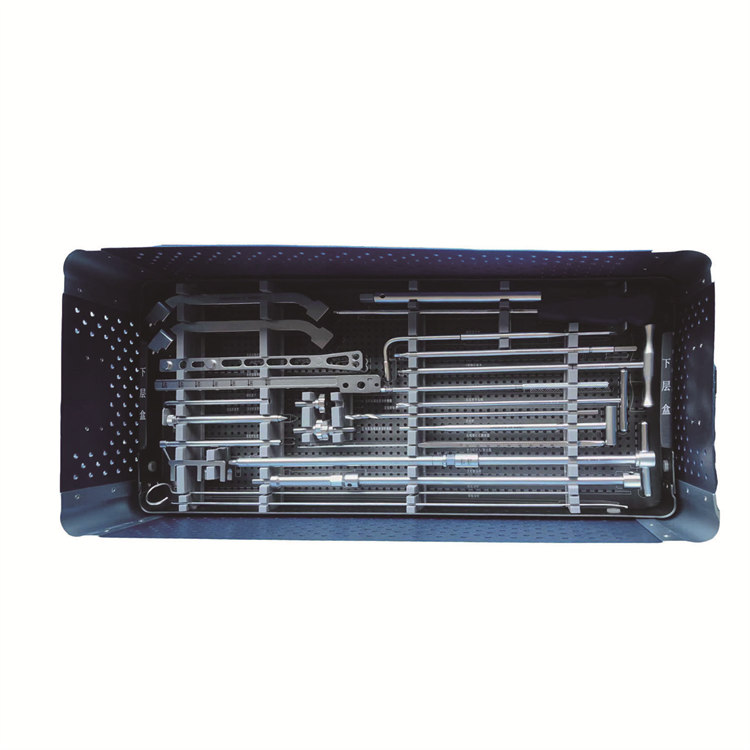

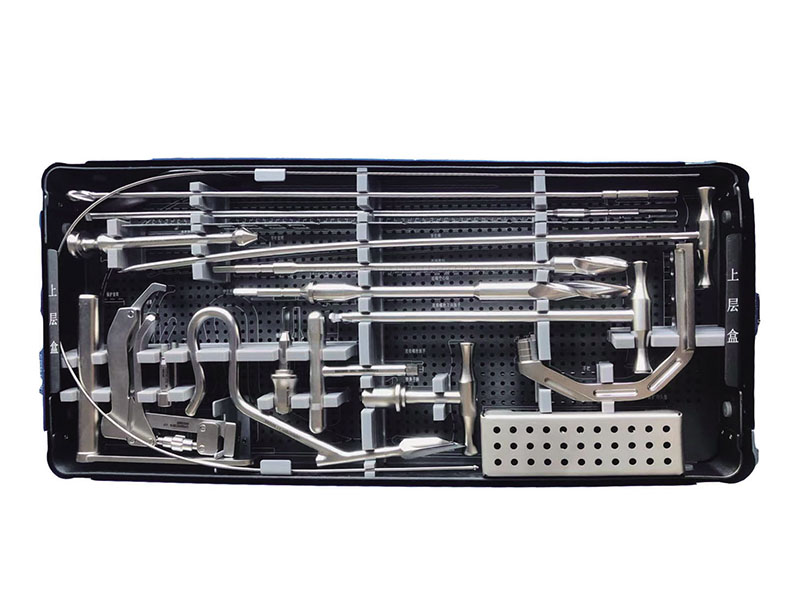

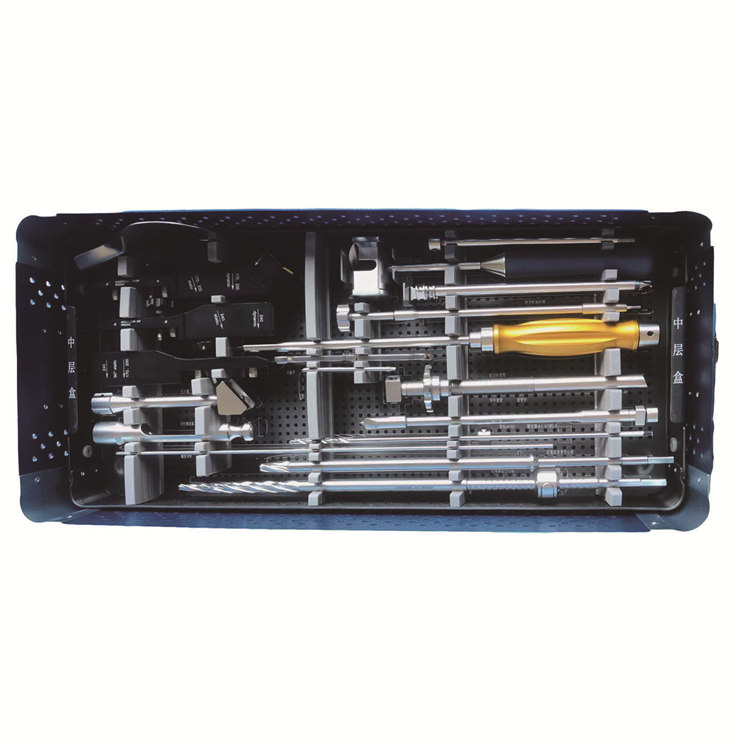

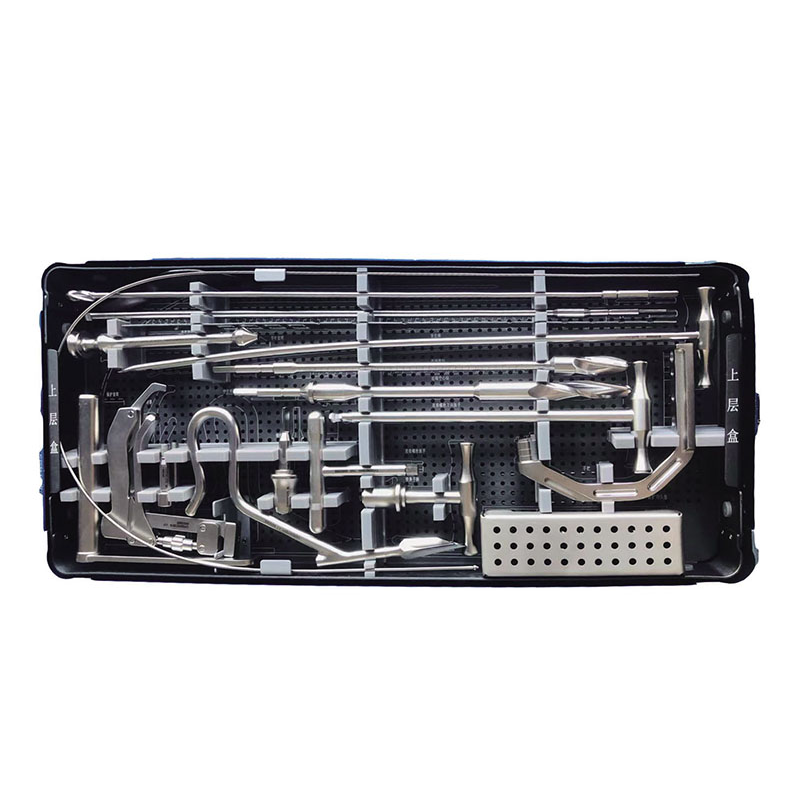

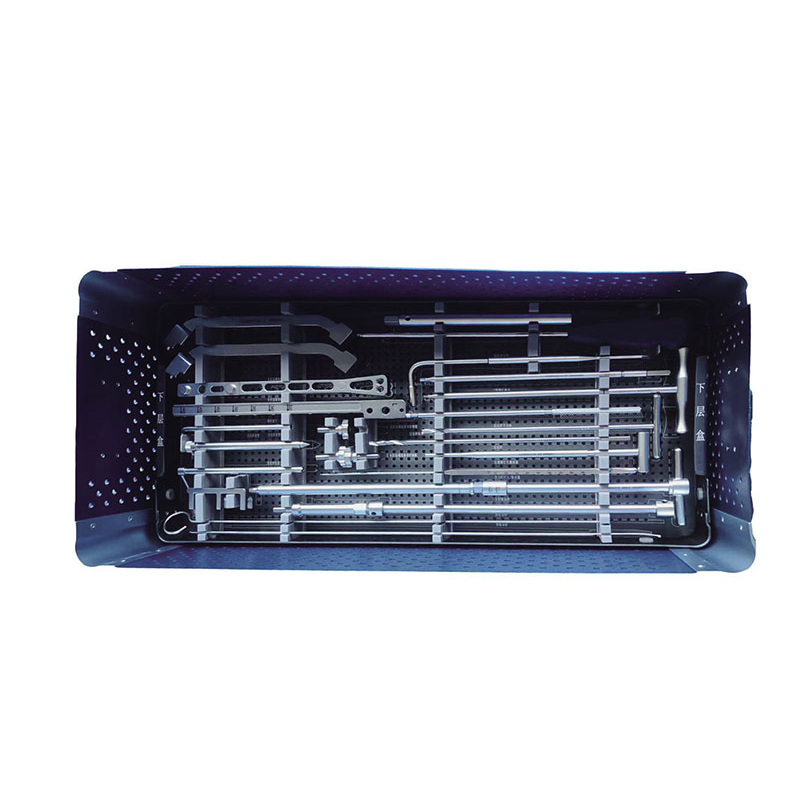

| Name | PFNA Intramedullary nail instrument |
| Matrial | Titanium Alloy |
| No. | Name | Specification | Size | Number | Coding |
|---|---|---|---|---|---|
| 1 | Bone measuring apparatus | Developing template | Φ9-Φ12 | 1 | 90002001 |
| 2 | Orthopedic drill sight | Protective sleeve | Φ18 | 1 | 90002039 |
| 3 | Orthopedic drill sight | Guide sleeve | Φ18/Φ3.2 | 1 | 90002040 |
| 4 | Orthopedic bit | Near end hollow drill | Φ17/Φ3.2 | 1 | 90002017 |
| 5 | Orthopedic bit | Near end soft drill positive turn | Positive turn | 1 | 90002019 |
| 6 | Quick-load handle | Quick-change handle | 92 | 1 | 90002055 |
| 7 | Quick-load handle | Conversion joint | 85 | 1 | 90002056 |
| 8 | Open cone | Hollow hole opener | Φ4.2 | 1 | 90002005 |
| 9 | Bone retractor | Soft tissue protector | 156 | 1 | 90002066 |
| 10 | Wire penetration guide | Reset rod | Φ7 | 1 | 90002016 |
| 11 | Orthopedic clamp | Guide needle holder | 117 | 1 | 90002050 |
| 12 | Bone guide needle | Ball guide needle | Φ4 | 1 | 90002006 |
| 13 | Medullary cavity enlargement drill | Hard expansion | Φ9 | 1 | 90002025 |
| 14 | Flexible pulp reamer | Soft reamer positive turn | Positive turn | 1 | 90002038 |
| 15 | Medullary cavity enlargement drill | Soft expanding head 8.5 | Φ8.5 | 1 | 90002026 |
| 16 | Medullary cavity enlargement drill | Soft expanding head 9 | Φ9 | 1 | 90002027 |
| 17 | Medullary cavity enlargement drill | Soft expanding head 9.5 | Φ9.5 | 1 | 90002028 |
| 18 | Medullary cavity enlargement drill | Soft expansion head 10 | Φ10 | 1 | 90002029 |
| 19 | Medullary cavity enlargement drill | Soft expansion head 10.5 | Φ10.5 | 1 | 90002030 |
| 20 | Medullary cavity enlargement drill | Soft expanding head 11 | Φ11 | 1 | 90002031 |
| 21 | Medullary cavity enlargement drill | Soft expanding head 11.5 | Φ11.5 | 1 | 90002032 |
| 22 | Medullary cavity enlargement drill | Soft expanding head 12 | Φ12 | 1 | 90002033 |
| 23 | Medullary cavity enlargement drill | Soft expansion head 12.5 | Φ12.5 | 1 | 90002034 |
| 24 | Medullary cavity enlargement drill | Soft expanding head 13 | Φ13 | 1 | 90002035 |
| 25 | Orthopedic clamp | handle | 12 | 1 | 90002051 |
| 26 | sheath | Connecting bolt | M8 | 2 | 90002067 |
| 27 | Orthopedic wrench | Connecting bolt wrench | SW8 | 1 | 90002058 |
| 28 | Orthopedic wrench | Universal wrench for connecting bolts | SW8 | 1 | 90002059 |
| 29 | driver | driver | 150 | 1 | 90002072 |
| 30 | Orthopedic wrench | Combination wrench | 148 | 1 | 90002060 |
| 31 | Bone hammer | Sliding hammer | 260 | 1 | 90002073 |
| 32 | Orthopedic drill sight | Proximal guide bar/distal guide bar | 170-200 | 1 | 90002041 |
| 33 | Orthopedic drill sight | Tension nail bushing | 217 | 1 | 90002042 |
| 34 | Orthopedic drill sight | Guide sleeve | 232 | 1 | 90002012 |
| 35 | Bone fixation needle | trocar | 250 | 1 | 90002011 |
| 36 | Bone guide needle | Thread guide | Φ3.2×400 | 5 | 90002003 |
| 37 | Depth sounder | Guide needle sounder | 70-120 | 1 | 90002002 |
| 38 | Orthopedic bit | Proximal cortical bone hollow drill | Φ10.8 | 1 | 90002020 |
| 39 | Orthopedic bit | Near end limit hollow drill | Φ10.6 | 1 | 90002021 |
| 40 | Orthopedic screwdriver | Tension nail drive/lock driver | SW4.5 | 1 | 90002054 |
| 41 | Nail extractor | The tension nail exits the connecting rod | M10×1 | 1 | 90002074 |
| 42 | Orthopedic clamp | Tension nail pressor | M4 | 1 | 90002053 |
| 43 | Orthopedic drill sight | Distal guide bar | 240 | 1 | 90002043 |
| 44 | Orthopedic drill sight | Distal 90° static guide bar | 170-240 | 1 | 90002044 |
| 45 | Orthopedic drill sight | Lock nail casing 11/8.2 | 11/8.2 | 2 | 90002010 |
| 46 | Orthopedic drill sight | Drill sleeve 8.2/4.2 | 8.2/4.2 | 2 | 90002009 |
| 47 | Bone fixation needle | Trocar 4.0 | 4 | 1 | 90002008 |
| 48 | Orthopedic bit | Bone drill 4*300 | 4*300 | 3 | 90002022 |
| 49 | Orthopedic positioning plate | Limit φ4.0/SW3.0 | SW3 | 1 | 90002068 |
| 50 | Orthopedic wrench | spanner | SW3 | 1 | 90002061 |
| 51 | Orthopedic positioning plate | Temporary dowel rod | Φ4 | 1 | 90002069 |
| 52 | Quick-load handle | Long nail distal lock wheel | M8×1 | 3 | 90002057 |
| 53 | Depth sounder | Distal pin hole sounder | 10-90 | 1 | 90002004 |
| 54 | Orthopedic wrench | T-lock wrench | SW3.5 | 1 | 90002062 |
| 55 | Orthopedic wrench | Lock nail wrench bar | SW3.5 | 1 | 90002063 |
| 56 | Orthopedic clamp | Tail cap hex holder bar | SW4 | 1 | 90002052 |
| 57 | Nail extractor | Tail cap hollow sleeve | SW11 | 1 | 90002075 |
| 58 | Bone probe | Guide needle with hook | Φ2.8 | 1 | 90002015 |
| 59 | Nail extractor | Tension nail drive/remove device | SW4.5 | 1 | 90002076 |
| 60 | Nail extractor | Main nail removal rod | M8 | 1 | 90002077 |
| 61 | Bone guide needle | Cleaning guide | Φ3.0 | 1 | 90002007 |
| 62 | Orthopedic drill sight | Connect the distal end of the long nail to the guide bar left/right | `Left/right` | 1 | 90002045 |
| 63 | Orthopedic wrench | Hollow wrench for tail cap | SW4 | 1 | 90002064 |
| 64 | Orthopedic wrench | Wheel lock wrench | SW5 | 1 | 90002065 |
| 65 | Orthopedic drill sight | Long nail distal guide bar | 320-440 | 1 | 90002046 |
| 66 | Orthopedic drill sight | Long nail distal positioning frame left | Left | 1 | 90002047 |
| 67 | Orthopedic drill sight | Long nail distal positioning frame right | Right | 1 | 90002048 |
| 68 | Orthopedic drill sight | Dowel sleeve | 120 | 1 | 90002014 |
| 69 | Bone fixation needle | Positioning rod trocar | 138 | 1 | 90002013 |
| 70 | Orthopedic drill sight | Positioning rod drill sleeve | 140 | 1 | 90002049 |
| 71 | Orthopedic bit | Dowel bit | Φ5.2 | 1 | 90002023 |
| 72 | Orthopedic bit | Positioning rod flat head drill | Φ5.2 | 1 | 90002024 |
| 73 | Orthopedic positioning plate | Dowel rod | 208 | 1 | 90002071 |
| 74 | Orthopedic positioning plate | Positioning card block | 54 | 1 | 90002070 |
| 75 | Soft expanding head box body | 1 | 90002018 | ||
| 76 | Instrument box | 1 | 90002078 |
Q1: Would you please give some information on shipping mode and charges?
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q2: Do you haveISO9001, ISO 13485, CE approvals?
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Q3: What is the minimum order that we can place? Do you provide free samples?
A: We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.
Q4:Can I buy products not shown but similar to your catalogue?
A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Q5:Do you have stock for listed products, or they are newly produced? What are your terms of payment?
A: Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment<=800usd, in="" advance.="" payment="">800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
